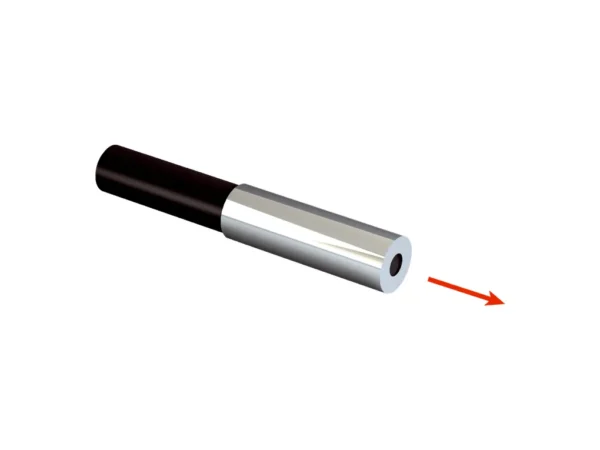

Home Fiber Optik Sensörler LL3-TB07 LIGHT GUIDE CYLINDR. TYPE – 5325919 🔍 LL3-TB07 LIGHT GUIDE CYLINDR. TYPE – 5325919 ✉ Teklif Al Teklif Al Stok kodu: 5325919 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 2.5 mm Fiber-optic head design Smooth sleeve Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.03 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 265 mm Operating mode 70 µs 795 mm Operating mode 250 µs 1,190 mm Operating mode 500 µs 1,605 mm Operating mode 1 ms 1,815 mm Operating mode 2 ms 2,280 mm Operating mode 8 ms 3,300 mm Sensing ranges with WLL180T Operating mode 16 µs 180 mm Operating mode 70 µs 540 mm Operating mode 250 µs 890 mm Operating mode 2 ms 1,700 mm Operating mode 8 ms 1,900 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 670 mm Sensing ranges with GLL170T Operating mode 50 µs 530 mm Operating mode 250 µs 760 mm İlgili ürünler Networks and Communication Products, ControlNet Medium-distance Fiber Module – 1786-RPFMALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361250 OPTICAL FIBER L=1250MM – 2073495SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37450 OPTICAL FIBER L=450MM – 2073497SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 2.5 mm Fiber-optic head design Smooth sleeve Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.03 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 265 mm Operating mode 70 µs 795 mm Operating mode 250 µs 1,190 mm Operating mode 500 µs 1,605 mm Operating mode 1 ms 1,815 mm Operating mode 2 ms 2,280 mm Operating mode 8 ms 3,300 mm Sensing ranges with WLL180T Operating mode 16 µs 180 mm Operating mode 70 µs 540 mm Operating mode 250 µs 890 mm Operating mode 2 ms 1,700 mm Operating mode 8 ms 1,900 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 670 mm Sensing ranges with GLL170T Operating mode 50 µs 530 mm Operating mode 250 µs 760 mm
