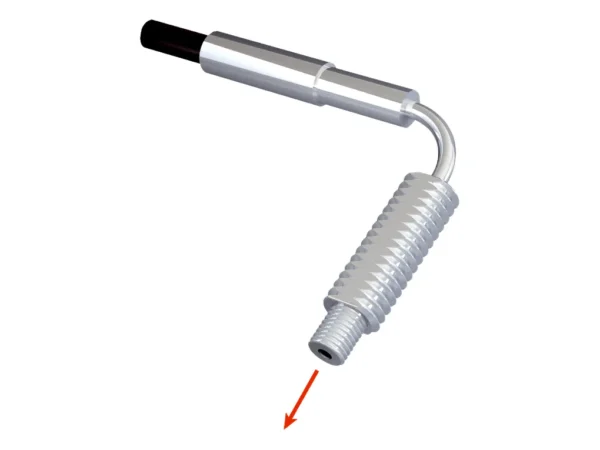

Home Fiber Optik Sensörler LL3-TB06 LIGHT GUIDE THREAD TYPE – 5325916 🔍 LL3-TB06 LIGHT GUIDE THREAD TYPE – 5325916 ✉ Teklif Al Teklif Al Stok kodu: 5325916 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve, 90° deflection Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 2.6 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.05 mm Included with delivery Mounting, 4 x M4 hexagon nut, 4 x washer, FC fiber cutter (5304141) Compatibility tip adapters Yes Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 230 mm Operating mode 70 µs 680 mm Operating mode 250 µs 1,015 mm Operating mode 500 µs 1,370 mm Operating mode 1 ms 1,550 mm Operating mode 2 ms 1,945 mm Operating mode 8 ms 2,820 mm Sensing ranges with WLL180T Operating mode 16 µs 150 mm Operating mode 70 µs 480 mm Operating mode 250 µs 770 mm Operating mode 2 ms 1,500 mm Operating mode 8 ms 1,600 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 590 mm Sensing ranges with GLL170T Operating mode 50 µs 460 mm Operating mode 250 µs 660 mm İlgili ürünler ControlNet Fiber Ring Ex Long Repeater – 1786-RPFRXLALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37750 OPTICAL FIBER L=750MM – 2073498SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31150 OPTICAL FIBER L=150MM – 2073483SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve, 90° deflection Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 2.6 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.05 mm Included with delivery Mounting, 4 x M4 hexagon nut, 4 x washer, FC fiber cutter (5304141) Compatibility tip adapters Yes Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 230 mm Operating mode 70 µs 680 mm Operating mode 250 µs 1,015 mm Operating mode 500 µs 1,370 mm Operating mode 1 ms 1,550 mm Operating mode 2 ms 1,945 mm Operating mode 8 ms 2,820 mm Sensing ranges with WLL180T Operating mode 16 µs 150 mm Operating mode 70 µs 480 mm Operating mode 250 µs 770 mm Operating mode 2 ms 1,500 mm Operating mode 8 ms 1,600 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 590 mm Sensing ranges with GLL170T Operating mode 50 µs 460 mm Operating mode 250 µs 660 mm
