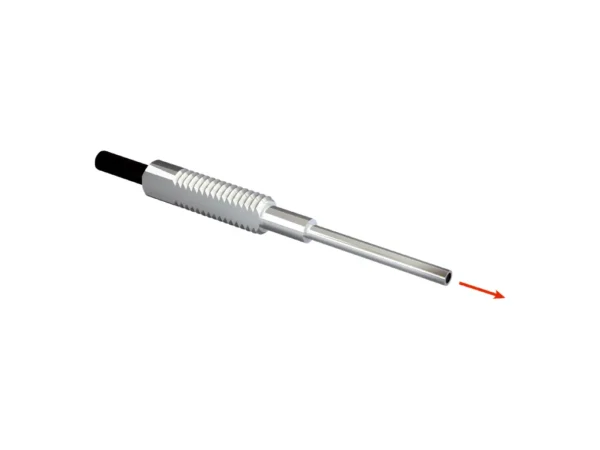

Home Fiber Optik Sensörler LL3-TB03 LIGHT GUIDE – 5308056 🔍 LL3-TB03 LIGHT GUIDE – 5308056 ✉ Teklif Al Teklif Al Stok kodu: 5308056 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve, Long end sleeve, Bendable sleeve Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 1.5 mm Length of taper ≥ 90 mm Diameter of taper ≥ 1.5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimum bend radius of end sleeve 15 mm Minimal object diameter 0.2 mm Included with delivery Mounting, 4 x M4 hexagon nut, 4 x washer, FC fiber cutter (5304141) Compatibility tip adapters No Special features Bendable end sleeve, ideal for inaccessible objects Mechanics/electronics Bend radius, fibre-optic cable 25 mm Bend radius, end sleeve 15 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 325 mm Operating mode 70 µs 975 mm Operating mode 250 µs 1,455 mm Operating mode 500 µs 1,960 mm Operating mode 1 ms 2,215 mm Operating mode 2 ms 2,780 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 240 mm Operating mode 70 µs 700 mm Operating mode 250 µs 1,400 mm Operating mode 2 ms 2,500 mm Operating mode 8 ms 2,900 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 550 mm Sensing ranges with GLL170T Operating mode 50 µs 580 mm Operating mode 250 µs 1,040 mm İlgili ürünler LL3-LM35750 OPTICAL FIBER L=750MM – 2073490SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37150 OPTICAL FIBER L=150MM – 2073496SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35450 OPTICAL FIBER L=450MM – 2073489SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37750 OPTICAL FIBER L=750MM – 2073498SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve, Long end sleeve, Bendable sleeve Fiber arrangement Monofiber Core structure Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 1.5 mm Length of taper ≥ 90 mm Diameter of taper ≥ 1.5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimum bend radius of end sleeve 15 mm Minimal object diameter 0.2 mm Included with delivery Mounting, 4 x M4 hexagon nut, 4 x washer, FC fiber cutter (5304141) Compatibility tip adapters No Special features Bendable end sleeve, ideal for inaccessible objects Mechanics/electronics Bend radius, fibre-optic cable 25 mm Bend radius, end sleeve 15 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 325 mm Operating mode 70 µs 975 mm Operating mode 250 µs 1,455 mm Operating mode 500 µs 1,960 mm Operating mode 1 ms 2,215 mm Operating mode 2 ms 2,780 mm Operating mode 8 ms 3,600 mm Sensing ranges with WLL180T Operating mode 16 µs 240 mm Operating mode 70 µs 700 mm Operating mode 250 µs 1,400 mm Operating mode 2 ms 2,500 mm Operating mode 8 ms 2,900 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 550 mm Sensing ranges with GLL170T Operating mode 50 µs 580 mm Operating mode 250 µs 1,040 mm
