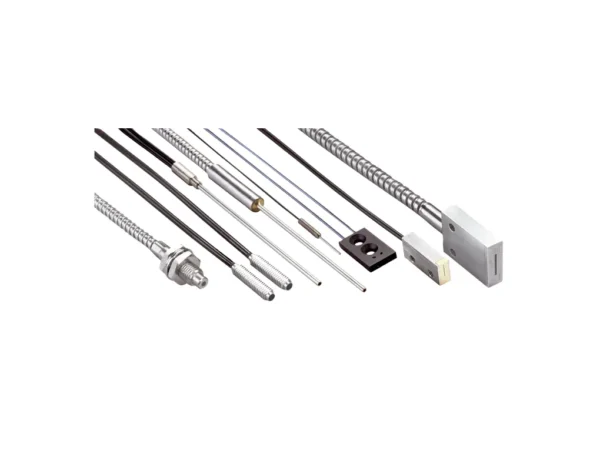

Home Fiber Optik Sensörler LL3-SH13 LIGHT GUIDE CABLE – 5338734 🔍 LL3-SH13 LIGHT GUIDE CABLE – 5338734 ✉ Teklif Al Teklif Al Stok kodu: 5338734 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 100,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material – Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) – Fiber-optic head design Without Fiber arrangement Monofiber Core structure Ø 1 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Included with delivery 100 m fibre-optic cables, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 2 mm Ambient operating temperature –55 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 İlgili ürünler LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35750 OPTICAL FIBER L=750MM – 2073490SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36750 OPTICAL FIBER L=750MM – 2073493SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 100,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material – Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) – Fiber-optic head design Without Fiber arrangement Monofiber Core structure Ø 1 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Included with delivery 100 m fibre-optic cables, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 2 mm Ambient operating temperature –55 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528
