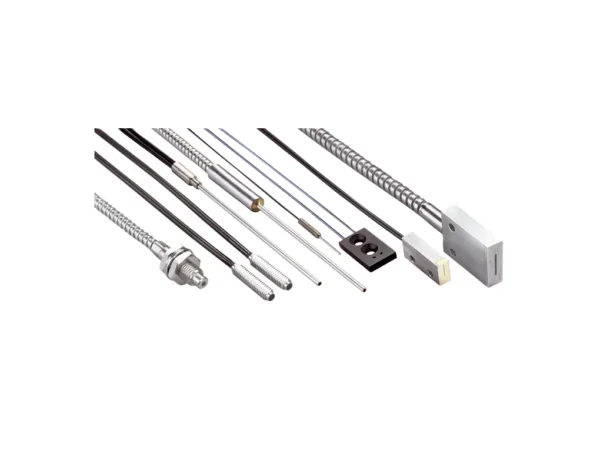

Home Fiber Optik Sensörler LL3-SH1004 LIGHT GUIDE 100M – 5321463 🔍 LL3-SH1004 LIGHT GUIDE 100M – 5321463 ✉ Teklif Al Teklif Al Stok kodu: 5321463 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 100,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Without Fiber arrangement Multi-fiber Core structure 4 x Ø 0.25 mm Multi-fiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Included with delivery 100 m fiber cable Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 4 mm Ambient operating temperature –55 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 İlgili ürünler LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35750 OPTICAL FIBER L=750MM – 2073490SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361250 OPTICAL FIBER L=1250MM – 2073495SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 100,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Without Fiber arrangement Multi-fiber Core structure 4 x Ø 0.25 mm Multi-fiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Included with delivery 100 m fiber cable Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 4 mm Ambient operating temperature –55 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528
