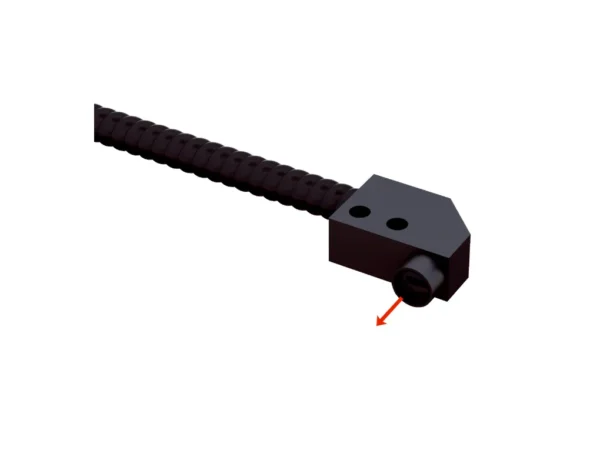

Home Fiber Optik Sensörler LL3-LM38751 OPTICAL FIBER L=751MM – 2073504 🔍 LL3-LM38751 OPTICAL FIBER L=751MM – 2073504 ✉ Teklif Al Teklif Al Stok kodu: 2073504 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 750 mm Fiber material Glass Jacket material Polyvinylchlorid (PVC) Fiber head material Chrome-plated metal coil Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic head design Flat type, 90° deflection Fiber arrangement Multi-fiber – linear arrangement Core structure Multi-fiber – linear arrangement Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) Yes Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 53.13° Integrated lens Yes Minimal object diameter 0.5 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 20 mm Ambient operating temperature –10 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 230 mm Operating mode 70 µs 690 mm Operating mode 250 µs 1,320 mm Operating mode 2 ms 1,350 mm Operating mode 8 ms 1,350 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 465 mm Sensing ranges with GLL170T Operating mode 50 µs 780 mm Operating mode 250 µs 1,321 mm İlgili ürünler LL3-LM311500 OPTICAL FIBER L=1500MM – 2073486SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-DL07 – 1094996SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31750 OPTICAL FIBER L=750MM – 2073485SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 750 mm Fiber material Glass Jacket material Polyvinylchlorid (PVC) Fiber head material Chrome-plated metal coil Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic head design Flat type, 90° deflection Fiber arrangement Multi-fiber – linear arrangement Core structure Multi-fiber – linear arrangement Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) Yes Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 53.13° Integrated lens Yes Minimal object diameter 0.5 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 20 mm Ambient operating temperature –10 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 230 mm Operating mode 70 µs 690 mm Operating mode 250 µs 1,320 mm Operating mode 2 ms 1,350 mm Operating mode 8 ms 1,350 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 465 mm Sensing ranges with GLL170T Operating mode 50 µs 780 mm Operating mode 250 µs 1,321 mm
