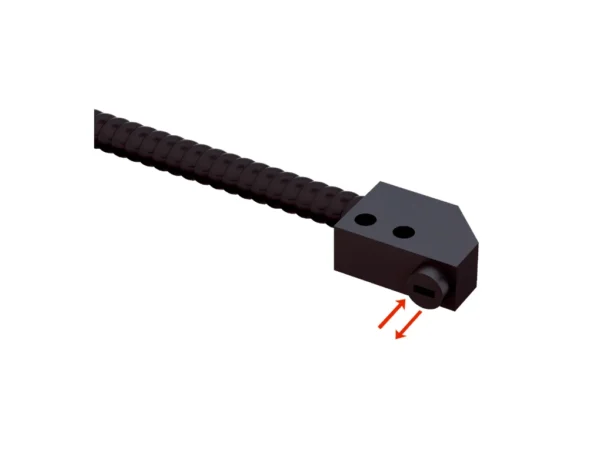

Home Fiber Optik Sensörler LL3-LM36150 OPTICAL FIBER L=150MM – 2073491 🔍 LL3-LM36150 OPTICAL FIBER L=150MM – 2073491 ✉ Teklif Al Teklif Al Stok kodu: 2073491 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 150 mm Fiber material Glass Jacket material Polyvinylchlorid (PVC) Fiber head material Chrome-plated metal coil Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic head design Flat type, 90° deflection Fiber arrangement Multi-fiber – linear arrangement Core structure Multi-fiber – linear arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.5 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 20 mm Ambient operating temperature –10 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 50 mm Operating mode 70 µs 160 mm Operating mode 250 µs 210 mm Operating mode 2 ms 240 mm Operating mode 8 ms 260 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 97 mm Sensing ranges with GLL170T Operating mode 50 µs 132 mm Operating mode 250 µs 229 mm İlgili ürünler LL3-LM37150 OPTICAL FIBER L=150MM – 2073496SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35150 OPTICAL FIBER L=150MM – 2073488SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git SynchLink Fiber 4 Port Splitter Block – 1751-SL4SPALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git ControlNet Fiber Ring Ex Long Repeater – 1786-RPFRXLALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 150 mm Fiber material Glass Jacket material Polyvinylchlorid (PVC) Fiber head material Chrome-plated metal coil Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic head design Flat type, 90° deflection Fiber arrangement Multi-fiber – linear arrangement Core structure Multi-fiber – linear arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.5 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 20 mm Ambient operating temperature –10 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 50 mm Operating mode 70 µs 160 mm Operating mode 250 µs 210 mm Operating mode 2 ms 240 mm Operating mode 8 ms 260 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 97 mm Sensing ranges with GLL170T Operating mode 50 µs 132 mm Operating mode 250 µs 229 mm
