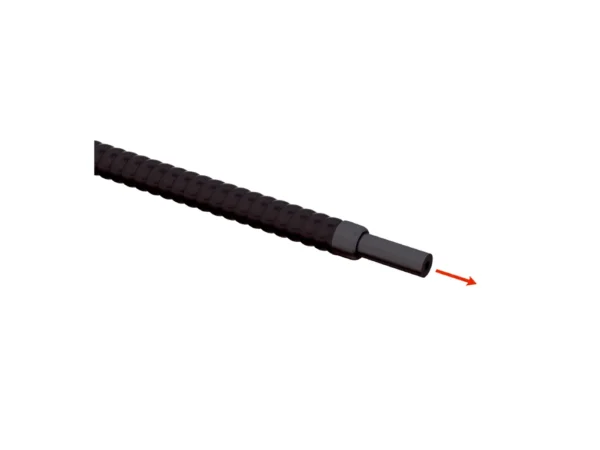

Home Fiber Optik Sensörler LL3-LM32450 OPTICAL FIBER L=450MM – 2073499 🔍 LL3-LM32450 OPTICAL FIBER L=450MM – 2073499 ✉ Teklif Al Teklif Al Stok kodu: 2073499 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 450 mm Fiber material Glass Jacket material Polyvinylchlorid (PVC) Fiber head material Chrome-plated metal coil Outer diameter, fiber-optic cable connection 2.2 mm Smooth sleeve diameter (greatest diameter) 5.8 mm Fiber-optic head design Smooth sleeve, Long end sleeve Fiber arrangement Monofiber Core structure Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Diameter/thread size from 2 mm taper ≥ 4 mm Length of taper ≥ 11.4 mm Diameter of taper ≥ 4 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.5 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 20 mm Ambient operating temperature –10 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 200 mm Operating mode 70 µs 550 mm Operating mode 250 µs 580 mm Operating mode 2 ms 580 mm Operating mode 8 ms 580 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 305 mm Sensing ranges with GLL170T Operating mode 50 µs 623 mm Operating mode 250 µs 640 mm İlgili ürünler Networks and Communication Products, ControlNet Medium-distance Fiber Module – 1786-RPFMALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361000 OPTICAL FIBER L=1000MM – 2073494SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git Photo Sensor, Background Reflection, Infrared LED, Complementary Light or Dark Operate, Auto PNP or NPN Output with IO-Link, Teach Button, 800 mm Sensing Range, 4-pin DC Micro(M12) on a 150 mm (6 in.) Pigtail – 42AF-N1MAC1-F4ALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36450 OPTICAL FIBER L=450MM – 2073492SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Through-beam system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 450 mm Fiber material Glass Jacket material Polyvinylchlorid (PVC) Fiber head material Chrome-plated metal coil Outer diameter, fiber-optic cable connection 2.2 mm Smooth sleeve diameter (greatest diameter) 5.8 mm Fiber-optic head design Smooth sleeve, Long end sleeve Fiber arrangement Monofiber Core structure Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Diameter/thread size from 2 mm taper ≥ 4 mm Length of taper ≥ 11.4 mm Diameter of taper ≥ 4 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.5 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 20 mm Ambient operating temperature –10 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 200 mm Operating mode 70 µs 550 mm Operating mode 250 µs 580 mm Operating mode 2 ms 580 mm Operating mode 8 ms 580 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 305 mm Sensing ranges with GLL170T Operating mode 50 µs 623 mm Operating mode 250 µs 640 mm
