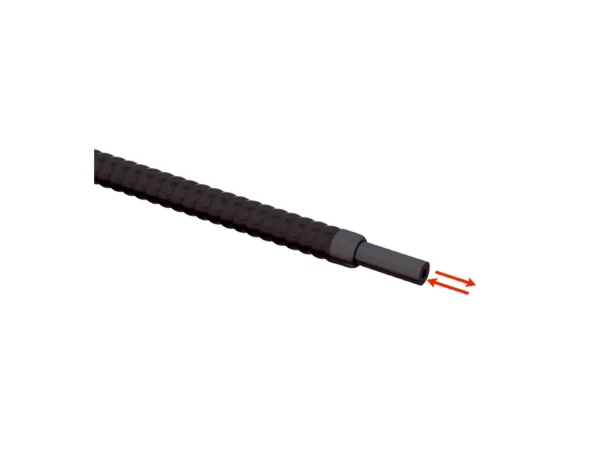

Home Fiber Optik Sensörler LL3-LM31450 OPTICAL FIBER L=450MM – 2073484 🔍 LL3-LM31450 OPTICAL FIBER L=450MM – 2073484 ✉ Teklif Al Teklif Al Stok kodu: 2073484 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 450 mm Fiber material Glass Jacket material Polyvinylchlorid (PVC) Fiber head material Chrome-plated metal coil Outer diameter, fiber-optic cable connection 2.2 mm Smooth sleeve diameter (greatest diameter) 5.8 mm Fiber-optic head design Smooth sleeve, Long end sleeve Array width 10.9 mm Fiber arrangement Multi-fiber – fiber bundle Core structure Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Diameter/thread size from 2 mm taper ≥ 4 mm Length of taper ≥ 11.4 mm Diameter of taper ≥ 4 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.5 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 20 mm Ambient operating temperature –10 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 50 mm Operating mode 70 µs 140 mm Operating mode 250 µs 240 mm Operating mode 2 ms 300 mm Operating mode 8 ms 310 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 93 mm Sensing ranges with GLL170T Operating mode 50 µs 168 mm Operating mode 250 µs 254 mm İlgili ürünler LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM311500 OPTICAL FIBER L=1500MM – 2073486SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36450 OPTICAL FIBER L=450MM – 2073492SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git ControlNet Fiber Ring Ex Long Repeater – 1786-RPFRXLALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system Functional principle detail Consisting of a sender and a receiver For fiber-optic sensor GLL170(T), WLL180 Fiber length 450 mm Fiber material Glass Jacket material Polyvinylchlorid (PVC) Fiber head material Chrome-plated metal coil Outer diameter, fiber-optic cable connection 2.2 mm Smooth sleeve diameter (greatest diameter) 5.8 mm Fiber-optic head design Smooth sleeve, Long end sleeve Array width 10.9 mm Fiber arrangement Multi-fiber – fiber bundle Core structure Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Diameter/thread size from 2 mm taper ≥ 4 mm Length of taper ≥ 11.4 mm Diameter of taper ≥ 4 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.5 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 20 mm Ambient operating temperature –10 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 50 mm Operating mode 70 µs 140 mm Operating mode 250 µs 240 mm Operating mode 2 ms 300 mm Operating mode 8 ms 310 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 93 mm Sensing ranges with GLL170T Operating mode 50 µs 168 mm Operating mode 250 µs 254 mm
