Name: SICK 5308093 | Fiber Optik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 5308093
Price: 4500.00 TRY
Availability: InStock

Tecnichal data

Features

Device type	Fibers
Functional principle	Proximity system
For fiber-optic sensor	GLL170(T), WLL180, WLL24 Ex, KTL180, WLL80
Fiber length	2,000 mm
Fiber material	Polymethylmethacrylat (PMMA)
Jacket material	Polytetrafluorethylen (PTFE)
Fiber head material	Polytetrafluorethylen (PTFE)
Outer diameter, fiber-optic cable connection	2.2 mm
Fiber-optic cable cuttable	✔
Smooth sleeve diameter (greatest diameter)	6 mm
Fiber-optic head design	Smooth sleeve
Fiber arrangement	Monofiber
Core structure	2 x Ø 1,0 mm Monofiber
Angle of dispersion < 60°	No
Compatibility with infrared light (1,450 nm)	No
Application	Resistant to oil/chemicals
Highly flexible/elastic fibers (bend radius 1–4 mm)	No
Adapter end sleeves required	No
Angle of dispersion	60°
Integrated lens	No
Minimal object diameter	0.02 mm
Included with delivery	FC fiber cutter (5304141)
Compatibility tip adapters	No
Special features	Special application: Teflon-coating, chemically resistant

Mechanics/electronics

Bend radius, fibre-optic cable	60 mm
Ambient operating temperature	–40 °C … +100 °C

Classifications

Sensing ranges with WLL80

Sensing ranges with WLL180T

Operating mode 16 µs	100 mm
Operating mode 70 µs	180 mm
Operating mode 250 µs	200 mm
Operating mode 2 ms	150 mm
Operating mode 8 ms	280 mm
Note	Sensing ranges related to fiber-optic sensors with type of light: visible red light

Sensing ranges with GLL170

Operating mode 250 µs

110 mm

Sensing ranges with GLL170T

Operating mode 50 µs	160 mm
Operating mode 250 µs	150 mm

Sensing ranges with KTL180

Operating mode 16 µs	2 mm
Operating mode 200 µs	2 mm

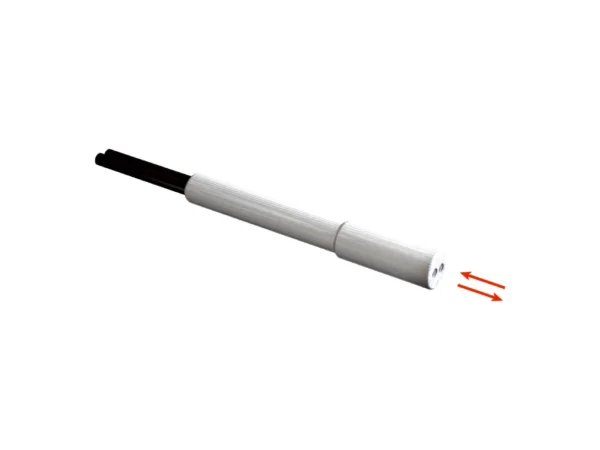

LL3-DY01 LIGHT GUIDE – 5308093
