Name: SICK 5315234 | Fiber Optik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 5315234
Price: 4500.00 TRY
Availability: InStock

Tecnichal data

Features

Device type	Fibers
Functional principle	Proximity system
For fiber-optic sensor	GLL170(T), WLL180
Fiber length	1,000 mm
Fiber material	Glass
Jacket material	Stainless steel
Fiber head material	Stainless steel
Outer diameter, fiber-optic cable connection	2.2 mm
Thread diameter (housing)	M6
Fiber-optic head design	Threaded sleeve
Angle of dispersion < 60°	No
Compatibility with infrared light (1,450 nm)	Yes
Application	Heat-resistant (≥100°C)
Diameter/thread size from 2 mm taper	≥ 4 mm
Length of taper	≥ 3 mm
Highly flexible/elastic fibers (bend radius 1–4 mm)	No
Adapter end sleeves required	No
Angle of dispersion	60°
Integrated lens	No
Minimal object diameter	0.02 mm
Included with delivery	Mounting, 2 x M6 hexagon nut, 1 x washer
Compatibility tip adapters	No

Mechanics/electronics

Bend radius, fibre-optic cable	25 mm
Ambient operating temperature	–40 °C … +210 °C

Classifications

Sensing ranges with WLL180T

Operating mode 16 µs	20 mm
Operating mode 70 µs	50 mm
Operating mode 250 µs	95 mm
Operating mode 2 ms	150 mm
Operating mode 8 ms	400 mm
Note	Sensing ranges related to fiber-optic sensors with type of light: visible red light

Sensing ranges with GLL170

Operating mode 250 µs

142 mm

Sensing ranges with GLL170T

Operating mode 50 µs	206 mm
Operating mode 250 µs	323 mm

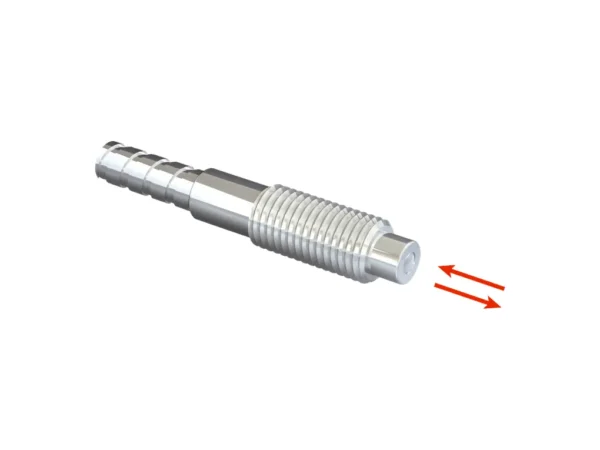

LL3-DW01 LIGHT GUIDE PROXIMITY – 5315234
