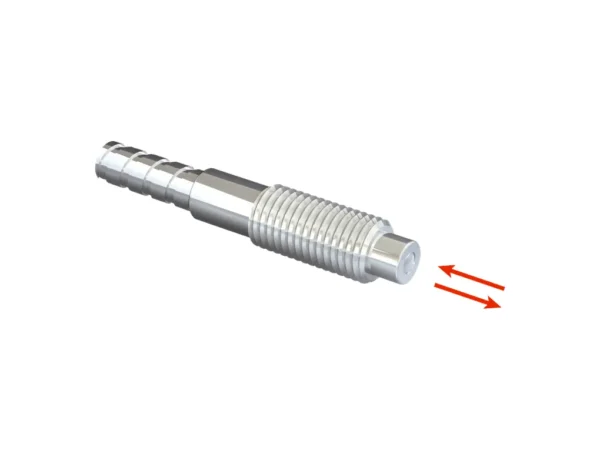

Home Fiber Optik Sensörler LL3-DW01-5 LIGHT GUIDE PROXIMITY – 5326221 🔍 LL3-DW01-5 LIGHT GUIDE PROXIMITY – 5326221 ✉ Teklif Al Teklif Al Stok kodu: 5326221 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180 Fiber length 5,000 mm Fiber material Glass Jacket material Stainless steel Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 4 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.02 mm Included with delivery Mounting, 2 x M6 hexagon nut, 1 x washer Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +210 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 20 mm Operating mode 70 µs 50 mm Operating mode 250 µs 95 mm Operating mode 2 ms 150 mm Operating mode 8 ms 400 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 113 mm Sensing ranges with GLL170T Operating mode 50 µs 171 mm Operating mode 250 µs 277 mm İlgili ürünler Photo Sensor, Background Reflection, Infrared LED, Complementary Light or Dark Operate, Auto PNP or NPN Output with IO-Link, Teach Button, 800 mm Sensing Range, 4-pin DC Micro(M12) on a 150 mm (6 in.) Pigtail – 42AF-N1MAC1-F4ALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git Networks and Communication Products, ControlNet Medium-distance Fiber Module – 1786-RPFMALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35150 OPTICAL FIBER L=150MM – 2073488SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180 Fiber length 5,000 mm Fiber material Glass Jacket material Stainless steel Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 4 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.02 mm Included with delivery Mounting, 2 x M6 hexagon nut, 1 x washer Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +210 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 20 mm Operating mode 70 µs 50 mm Operating mode 250 µs 95 mm Operating mode 2 ms 150 mm Operating mode 8 ms 400 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 113 mm Sensing ranges with GLL170T Operating mode 50 µs 171 mm Operating mode 250 µs 277 mm
