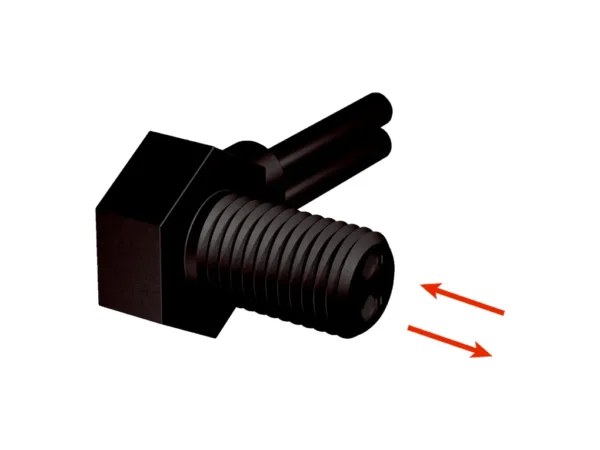

Home Fiber Optik Sensörler LL3-DV07 LIGHT GUIDE TIGHT BEND – 5322551 🔍 LL3-DV07 LIGHT GUIDE TIGHT BEND – 5322551 ✉ Teklif Al Teklif Al Stok kodu: 5322551 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polyamid (PA) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve, 90° deflection Fiber arrangement Monofiber Core structure Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application High flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required No Angle of dispersion 15.94° Integrated lens Yes Minimal object diameter 0.015 mm Included with delivery Mounting, 1 x M6 hexagon nut, FC fiber cutter (5304141) Compatibility tip adapters No Special features 90° deflection integrated, minimum insertion depths Mechanics/electronics Bend radius, fibre-optic cable 2 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 40 mm Operating mode 70 µs 125 mm Operating mode 250 µs 210 mm Operating mode 500 µs 250 mm Operating mode 1 ms 285 mm Operating mode 2 ms 410 mm Operating mode 8 ms 660 mm Sensing ranges with WLL180T Operating mode 16 µs 20 mm Operating mode 70 µs 110 mm Operating mode 250 µs 180 mm Operating mode 2 ms 400 mm Operating mode 8 ms 650 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 60 mm Sensing ranges with GLL170T Operating mode 50 µs 60 mm Operating mode 250 µs 100 mm İlgili ürünler LL3-LM361250 OPTICAL FIBER L=1250MM – 2073495SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git ControlNet Fiber Ring Ex Long Repeater – 1786-RPFRXLALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM311500 OPTICAL FIBER L=1500MM – 2073486SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polyamid (PA) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve, 90° deflection Fiber arrangement Monofiber Core structure Monofiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application High flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required No Angle of dispersion 15.94° Integrated lens Yes Minimal object diameter 0.015 mm Included with delivery Mounting, 1 x M6 hexagon nut, FC fiber cutter (5304141) Compatibility tip adapters No Special features 90° deflection integrated, minimum insertion depths Mechanics/electronics Bend radius, fibre-optic cable 2 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 40 mm Operating mode 70 µs 125 mm Operating mode 250 µs 210 mm Operating mode 500 µs 250 mm Operating mode 1 ms 285 mm Operating mode 2 ms 410 mm Operating mode 8 ms 660 mm Sensing ranges with WLL180T Operating mode 16 µs 20 mm Operating mode 70 µs 110 mm Operating mode 250 µs 180 mm Operating mode 2 ms 400 mm Operating mode 8 ms 650 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 60 mm Sensing ranges with GLL170T Operating mode 50 µs 60 mm Operating mode 250 µs 100 mm
