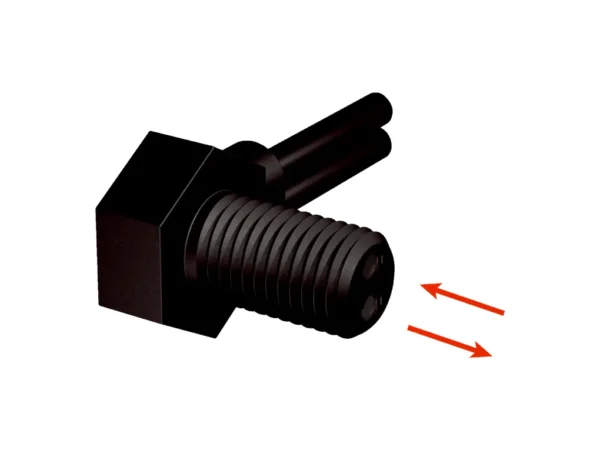

Home Fiber Optik Sensörler LL3-DV06 LIGHT GUIDE HIGH TEMP – 5322550 🔍 LL3-DV06 LIGHT GUIDE HIGH TEMP – 5322550 ✉ Teklif Al Teklif Al Stok kodu: 5322550 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polyamid (PA) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve, 90° deflection Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application Heat-resistant (≥100°C) Highly flexible/elastic fibers (bend radius 1–4 mm) No Angle of dispersion 15.94° Integrated lens Yes Minimal object diameter 0.015 mm Compatibility tip adapters No Special features 90° deflection integrated, minimum insertion depths Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +105 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 35 mm Operating mode 70 µs 105 mm Operating mode 250 µs 175 mm Operating mode 500 µs 215 mm Operating mode 1 ms 255 mm Operating mode 2 ms 360 mm Operating mode 8 ms 540 mm Sensing ranges with WLL180T Operating mode 16 µs 30 mm Operating mode 70 µs 130 mm Operating mode 250 µs 210 mm Operating mode 2 ms 450 mm Operating mode 8 ms 800 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 50 mm Sensing ranges with GLL170T Operating mode 50 µs 70 mm Operating mode 250 µs 120 mm İlgili ürünler Photo Sensor, Background Reflection, Infrared LED, Complementary Light or Dark Operate, Auto PNP or NPN Output with IO-Link, Teach Button, 800 mm Sensing Range, 4-pin DC Micro(M12) on a 150 mm (6 in.) Pigtail – 42AF-N1MAC1-F4ALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git Photo Sensor, Background Suppression, Infrared LED, Complementary Light or Dark Operate, Auto PNP or NPN Output with IO-Link, No Physical Adjustment, 400 mm Sensing Range, 4-pin DC Micro(M12) on a 150 mm (6 in.) Pigtail – 42AF-B1MAB1-F4ALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37450 OPTICAL FIBER L=450MM – 2073497SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361000 OPTICAL FIBER L=1000MM – 2073494SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polyamid (PA) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve, 90° deflection Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application Heat-resistant (≥100°C) Highly flexible/elastic fibers (bend radius 1–4 mm) No Angle of dispersion 15.94° Integrated lens Yes Minimal object diameter 0.015 mm Compatibility tip adapters No Special features 90° deflection integrated, minimum insertion depths Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +105 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 35 mm Operating mode 70 µs 105 mm Operating mode 250 µs 175 mm Operating mode 500 µs 215 mm Operating mode 1 ms 255 mm Operating mode 2 ms 360 mm Operating mode 8 ms 540 mm Sensing ranges with WLL180T Operating mode 16 µs 30 mm Operating mode 70 µs 130 mm Operating mode 250 µs 210 mm Operating mode 2 ms 450 mm Operating mode 8 ms 800 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 50 mm Sensing ranges with GLL170T Operating mode 50 µs 70 mm Operating mode 250 µs 120 mm
