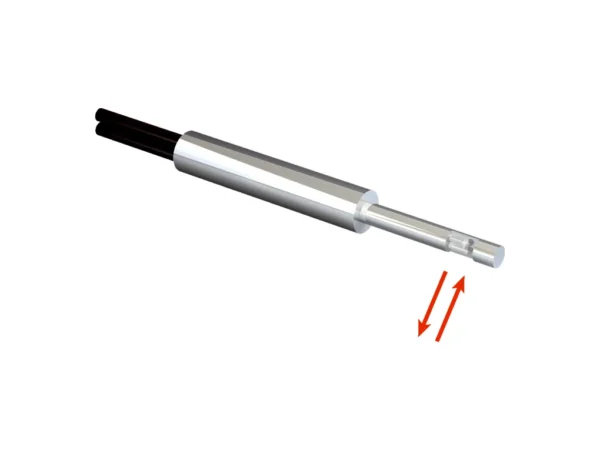

Home Fiber Optik Sensörler LL3-DV02 LIGHT GUIDE – 5308089 🔍 LL3-DV02 LIGHT GUIDE – 5308089 ✉ Teklif Al Teklif Al Stok kodu: 5308089 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 3 mm Fiber-optic head design Smooth sleeve, Long end sleeve, 90° deflection Fiber arrangement Monofiber Core structure 2 x Ø 0,5 mm Monofiber Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 1.5 mm Length of taper ≥ 10 mm Diameter of taper ≥ 1.5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Minimal object diameter 0.015 mm Included with delivery Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features 90° deflection integrated, minimum insertion depths, compact end sleeve Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 25 mm Operating mode 70 µs 70 mm Operating mode 250 µs 95 mm Operating mode 500 µs 125 mm Operating mode 1 ms 145 mm Operating mode 2 ms 215 mm Operating mode 8 ms 320 mm Sensing ranges with WLL180T Operating mode 16 µs 10 mm Operating mode 70 µs 35 mm Operating mode 250 µs 70 mm Operating mode 2 ms 125 mm Operating mode 8 ms 290 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 20 mm Sensing ranges with GLL170T Operating mode 50 µs 20 mm Operating mode 250 µs 40 mm İlgili ürünler LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37450 OPTICAL FIBER L=450MM – 2073497SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37150 OPTICAL FIBER L=150MM – 2073496SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 3 mm Fiber-optic head design Smooth sleeve, Long end sleeve, 90° deflection Fiber arrangement Monofiber Core structure 2 x Ø 0,5 mm Monofiber Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 1.5 mm Length of taper ≥ 10 mm Diameter of taper ≥ 1.5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Minimal object diameter 0.015 mm Included with delivery Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features 90° deflection integrated, minimum insertion depths, compact end sleeve Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 25 mm Operating mode 70 µs 70 mm Operating mode 250 µs 95 mm Operating mode 500 µs 125 mm Operating mode 1 ms 145 mm Operating mode 2 ms 215 mm Operating mode 8 ms 320 mm Sensing ranges with WLL180T Operating mode 16 µs 10 mm Operating mode 70 µs 35 mm Operating mode 250 µs 70 mm Operating mode 2 ms 125 mm Operating mode 8 ms 290 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 20 mm Sensing ranges with GLL170T Operating mode 50 µs 20 mm Operating mode 250 µs 40 mm
