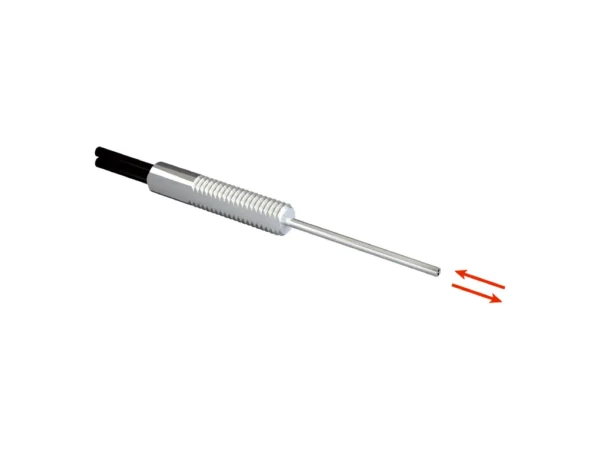

Home Fiber Optik Sensörler LL3-DT02 LIGHT GUIDE – 5308085 🔍 LL3-DT02 LIGHT GUIDE – 5308085 ✉ Teklif Al Teklif Al Stok kodu: 5308085 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 500 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve, Long end sleeve Fiber arrangement Monofiber Core structure 2 x Ø 0,25 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application High flexible (static), Robotics (dynamic flexible) Diameter/thread size from 2 mm taper ≥ 0.82 mm Length of taper ≥ 15 mm Diameter of taper ≥ 0.82 mm Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.015 mm Included with delivery Mounting, 2 x M3 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Compact, thin tip Mechanics/electronics Bend radius, fibre-optic cable 4 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 10 mm Operating mode 70 µs 35 mm Operating mode 250 µs 65 mm Operating mode 500 µs 80 mm Operating mode 1 ms 95 mm Operating mode 2 ms 150 mm Operating mode 8 ms 240 mm Sensing ranges with WLL180T Operating mode 16 µs 10 mm Operating mode 70 µs 30 mm Operating mode 250 µs 60 mm Operating mode 2 ms 140 mm Operating mode 8 ms 225 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 10 mm Sensing ranges with GLL170T Operating mode 50 µs 10 mm Operating mode 250 µs 30 mm İlgili ürünler LL3-LM311500 OPTICAL FIBER L=1500MM – 2073486SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31450 OPTICAL FIBER L=450MM – 2073484SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37750 OPTICAL FIBER L=750MM – 2073498SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-DL07 – 1094996SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 500 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve, Long end sleeve Fiber arrangement Monofiber Core structure 2 x Ø 0,25 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application High flexible (static), Robotics (dynamic flexible) Diameter/thread size from 2 mm taper ≥ 0.82 mm Length of taper ≥ 15 mm Diameter of taper ≥ 0.82 mm Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.015 mm Included with delivery Mounting, 2 x M3 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Compact, thin tip Mechanics/electronics Bend radius, fibre-optic cable 4 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 10 mm Operating mode 70 µs 35 mm Operating mode 250 µs 65 mm Operating mode 500 µs 80 mm Operating mode 1 ms 95 mm Operating mode 2 ms 150 mm Operating mode 8 ms 240 mm Sensing ranges with WLL180T Operating mode 16 µs 10 mm Operating mode 70 µs 30 mm Operating mode 250 µs 60 mm Operating mode 2 ms 140 mm Operating mode 8 ms 225 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 10 mm Sensing ranges with GLL170T Operating mode 50 µs 10 mm Operating mode 250 µs 30 mm
