Name: SICK 5308073 | Fiber Optik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 5308073
Price: 4500.00 TRY
Availability: InStock

Tecnichal data

Features

Device type	Fibers
Functional principle	Proximity system
For fiber-optic sensor	GLL170(T), WLL180, WLL80
Fiber length	2,000 mm
Fiber material	Polymethylmethacrylat (PMMA)
Jacket material	Polyethylen (PE)
Fiber head material	Stainless steel
Outer diameter, fiber-optic cable connection	1 mm
Fiber-optic cable cuttable	✔
Thread diameter (housing)	M3
Fiber-optic head design	Threaded sleeve
Fiber arrangement	Monofiber
Core structure	2 x Ø 0,5 mm Monofiber
Angle of dispersion < 60°	No
Compatibility with infrared light (1,450 nm)	No
Highly flexible/elastic fibers (bend radius 1–4 mm)	No
Adapter end sleeves required	Yes
Angle of dispersion	60°
Integrated lens	No
Minimal object diameter	0.015 mm
Included with delivery	Mounting, 2 x M3 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141)
Compatibility tip adapters	No
Special features	Standard, compact head and end sleeve, large sensing range

Mechanics/electronics

Bend radius, fibre-optic cable	15 mm
Ambient operating temperature	–40 °C … +70 °C

Classifications

Sensing ranges with WLL80

Sensing ranges with WLL180T

Operating mode 16 µs	18 mm
Operating mode 70 µs	55 mm
Operating mode 250 µs	95 mm
Operating mode 2 ms	190 mm
Operating mode 8 ms	360 mm
Note	Sensing ranges related to fiber-optic sensors with type of light: visible red light

Sensing ranges with GLL170

Operating mode 250 µs

60 mm

Sensing ranges with GLL170T

Operating mode 50 µs	50 mm
Operating mode 250 µs	90 mm

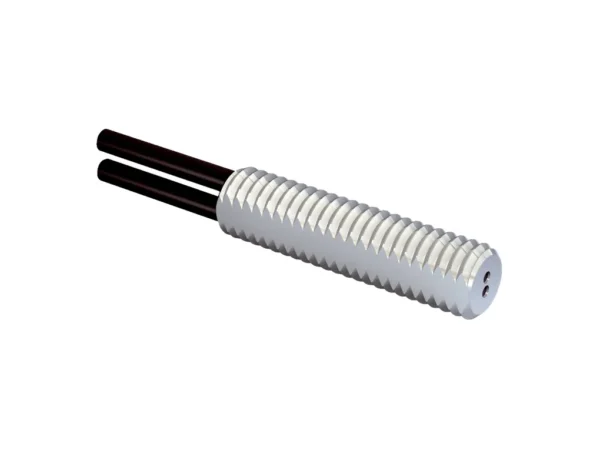

LL3-DS06 LIGHT GUIDE – 5308073
