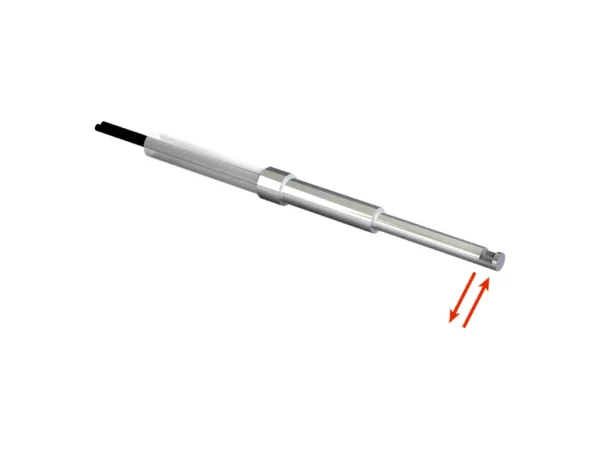

Home Fiber Optik Sensörler LL3-DR12 LIGHT GUIDE CYLINDR. TYPE – 5326001 🔍 LL3-DR12 LIGHT GUIDE CYLINDR. TYPE – 5326001 ✉ Teklif Al Teklif Al Stok kodu: 5326001 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 3 mm Fiber-optic head design Smooth sleeve, Long end sleeve, 90° deflection Fiber arrangement Multi-fiber – fiber bundle Core structure S: 151 x Ø 0,05 mm R: 151 x Ø 0,05 mm Multi-fiber – fiber bundle Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application High flexible (static) Diameter/thread size from 2 mm taper ≥ 2 mm Length of taper ≥ 15 mm Diameter of taper ≥ 2 mm Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 49.4° Integrated lens Yes Minimal object diameter 0.02 mm Included with delivery Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 1 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 4 mm Operating mode 70 µs 13 mm Operating mode 250 µs 20 mm Operating mode 500 µs 25 mm Operating mode 1 ms 35 mm Operating mode 2 ms 55 mm Operating mode 8 ms 80 mm Sensing ranges with WLL180T Operating mode 16 µs 4 mm Operating mode 70 µs 13 mm Operating mode 250 µs 27 mm Operating mode 2 ms 55 mm Operating mode 8 ms 59 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 10 mm Sensing ranges with GLL170T Operating mode 50 µs 0 mm Operating mode 250 µs 20 mm İlgili ürünler LL3-LM35150 OPTICAL FIBER L=150MM – 2073488SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM311500 OPTICAL FIBER L=1500MM – 2073486SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git Photo Sensor, Background Reflection, Infrared LED, Complementary Light or Dark Operate, Auto PNP or NPN Output with IO-Link, Teach Button, 800 mm Sensing Range, 4-pin DC Micro(M12) on a 150 mm (6 in.) Pigtail – 42AF-N1MAC1-F4ALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 3 mm Fiber-optic head design Smooth sleeve, Long end sleeve, 90° deflection Fiber arrangement Multi-fiber – fiber bundle Core structure S: 151 x Ø 0,05 mm R: 151 x Ø 0,05 mm Multi-fiber – fiber bundle Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application High flexible (static) Diameter/thread size from 2 mm taper ≥ 2 mm Length of taper ≥ 15 mm Diameter of taper ≥ 2 mm Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 49.4° Integrated lens Yes Minimal object diameter 0.02 mm Included with delivery Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 1 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 4 mm Operating mode 70 µs 13 mm Operating mode 250 µs 20 mm Operating mode 500 µs 25 mm Operating mode 1 ms 35 mm Operating mode 2 ms 55 mm Operating mode 8 ms 80 mm Sensing ranges with WLL180T Operating mode 16 µs 4 mm Operating mode 70 µs 13 mm Operating mode 250 µs 27 mm Operating mode 2 ms 55 mm Operating mode 8 ms 59 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 10 mm Sensing ranges with GLL170T Operating mode 50 µs 0 mm Operating mode 250 µs 20 mm
