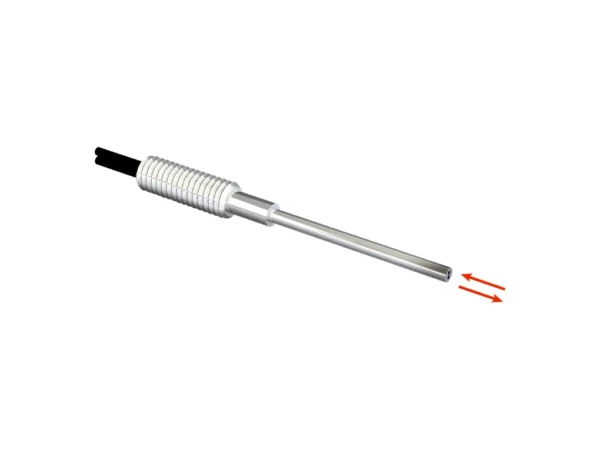

Home Fiber Optik Sensörler LL3-DR10 LIGHT GUIDE LONG END TIP – 5326005 🔍 LL3-DR10 LIGHT GUIDE LONG END TIP – 5326005 ✉ Teklif Al Teklif Al Stok kodu: 5326005 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve, Long end sleeve, Bendable sleeve Fiber arrangement Multi-fiber – fiber bundle Core structure 2 x (151 x Ø 0,05 mm) Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 1.48 mm Length of taper ≥ 35 mm Diameter of taper ≥ 1.48 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.02 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 10 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 15 mm Operating mode 70 µs 45 mm Operating mode 250 µs 75 mm Operating mode 500 µs 90 mm Operating mode 1 ms 115 mm Operating mode 2 ms 185 mm Operating mode 8 ms 260 mm Sensing ranges with WLL180T Operating mode 16 µs 12 mm Operating mode 70 µs 40 mm Operating mode 250 µs 77 mm Operating mode 2 ms 150 mm Operating mode 8 ms 160 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 40 mm Sensing ranges with GLL170T Operating mode 50 µs 20 mm Operating mode 250 µs 50 mm İlgili ürünler LL3-LM36750 OPTICAL FIBER L=750MM – 2073493SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM311500 OPTICAL FIBER L=1500MM – 2073486SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git ControlNet Fiber Ring Ex Long Repeater – 1786-RPFRXLALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git Photo Sensor, Background Suppression, Infrared LED, Complementary Light or Dark Operate, Auto PNP or NPN Output with IO-Link, No Physical Adjustment, 400 mm Sensing Range, 4-pin DC Micro(M12) on a 150 mm (6 in.) Pigtail – 42AF-B1MAB1-F4ALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve, Long end sleeve, Bendable sleeve Fiber arrangement Multi-fiber – fiber bundle Core structure 2 x (151 x Ø 0,05 mm) Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 1.48 mm Length of taper ≥ 35 mm Diameter of taper ≥ 1.48 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.02 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 10 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 15 mm Operating mode 70 µs 45 mm Operating mode 250 µs 75 mm Operating mode 500 µs 90 mm Operating mode 1 ms 115 mm Operating mode 2 ms 185 mm Operating mode 8 ms 260 mm Sensing ranges with WLL180T Operating mode 16 µs 12 mm Operating mode 70 µs 40 mm Operating mode 250 µs 77 mm Operating mode 2 ms 150 mm Operating mode 8 ms 160 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 40 mm Sensing ranges with GLL170T Operating mode 50 µs 20 mm Operating mode 250 µs 50 mm
