Name: SICK 5308081 | Fiber Optik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 5308081
Price: 4500.00 TRY
Availability: InStock

Tecnichal data

Features

Device type	Fibers
Functional principle	Proximity system
For fiber-optic sensor	GLL170(T), WLL180, WLL80
Fiber length	1,000 mm
Fiber material	Polymethylmethacrylat (PMMA)
Jacket material	Polyethylen (PE)
Fiber head material	Stainless steel
Outer diameter, fiber-optic cable connection	1.3 mm
Fiber-optic cable cuttable	✔
Smooth sleeve diameter (greatest diameter)	1.5 mm
Fiber-optic head design	Smooth sleeve
Fiber arrangement	Multi-fiber – fiber bundle
Core structure	S: 2 x Ø 0,25 mm R: 2 x Ø 0,25 mm Multi-fiber – fiber bundle
Angle of dispersion < 60°	No
Compatibility with infrared light (1,450 nm)	No
Application	High flexible (static), Robotics (dynamic flexible)
Highly flexible/elastic fibers (bend radius 1–4 mm)	Yes
Adapter end sleeves required	No
Angle of dispersion	60°
Integrated lens	No
Minimal object diameter	0.015 mm
Compatibility tip adapters	No
Special features	Flexible fiber-optic cable, extra-small, extra-thin end sleeve

Mechanics/electronics

Bend radius, fibre-optic cable	4 mm
Ambient operating temperature	–40 °C … +70 °C

Classifications

Sensing ranges with WLL80

Sensing ranges with WLL180T

Operating mode 16 µs	20 mm
Operating mode 70 µs	70 mm
Operating mode 250 µs	110 mm
Operating mode 2 ms	220 mm
Operating mode 8 ms	360 mm
Note	Sensing ranges related to fiber-optic sensors with type of light: visible red light

Sensing ranges with GLL170

Operating mode 250 µs

20 mm

Sensing ranges with GLL170T

Operating mode 50 µs	30 mm
Operating mode 250 µs	60 mm

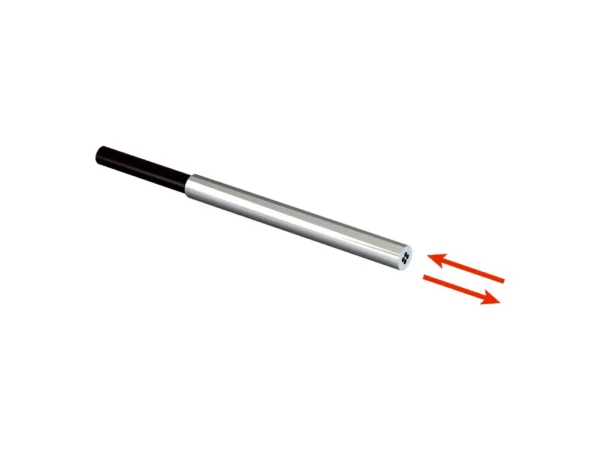

LL3-DR04 LIGHT GUIDE – 5308081
