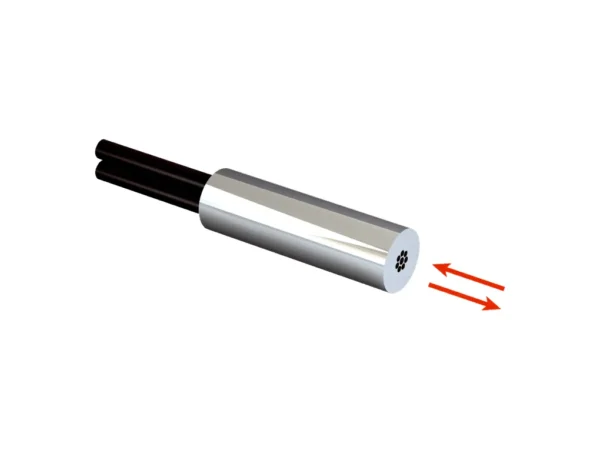

Home Fiber Optik Sensörler LL3-DR03 LIGHT GUIDE 2M0 PROXIM. – 5308080 🔍 LL3-DR03 LIGHT GUIDE 2M0 PROXIM. – 5308080 ✉ Teklif Al Teklif Al Stok kodu: 5308080 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 3 mm Fiber-optic head design Smooth sleeve Fiber arrangement Multi-fiber – fiber bundle Core structure S: 4 x Ø 0,25 mm, R: 4 x Ø 0,25 mm Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application High flexible (static), Robotics (dynamic flexible) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.015 mm Included with delivery Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Flexible fiber-optic cable, extra-short end sleeve Mechanics/electronics Bend radius, fibre-optic cable 4 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 25 mm Operating mode 70 µs 85 mm Operating mode 250 µs 150 mm Operating mode 500 µs 180 mm Operating mode 1 ms 220 mm Operating mode 2 ms 330 mm Operating mode 8 ms 510 mm Sensing ranges with WLL180T Operating mode 16 µs 25 mm Operating mode 70 µs 70 mm Operating mode 250 µs 120 mm Operating mode 2 ms 250 mm Operating mode 8 ms 450 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 40 mm Sensing ranges with GLL170T Operating mode 50 µs 40 mm Operating mode 250 µs 80 mm İlgili ürünler LL3-LM35750 OPTICAL FIBER L=750MM – 2073490SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31450 OPTICAL FIBER L=450MM – 2073484SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git Photo Sensor, Background Reflection, Infrared LED, Complementary Light or Dark Operate, Auto PNP or NPN Output with IO-Link, Teach Button, 800 mm Sensing Range, 4-pin DC Micro(M12) on a 150 mm (6 in.) Pigtail – 42AF-N1MAC1-F4ALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 3 mm Fiber-optic head design Smooth sleeve Fiber arrangement Multi-fiber – fiber bundle Core structure S: 4 x Ø 0,25 mm, R: 4 x Ø 0,25 mm Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application High flexible (static), Robotics (dynamic flexible) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.015 mm Included with delivery Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Flexible fiber-optic cable, extra-short end sleeve Mechanics/electronics Bend radius, fibre-optic cable 4 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 25 mm Operating mode 70 µs 85 mm Operating mode 250 µs 150 mm Operating mode 500 µs 180 mm Operating mode 1 ms 220 mm Operating mode 2 ms 330 mm Operating mode 8 ms 510 mm Sensing ranges with WLL180T Operating mode 16 µs 25 mm Operating mode 70 µs 70 mm Operating mode 250 µs 120 mm Operating mode 2 ms 250 mm Operating mode 8 ms 450 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 40 mm Sensing ranges with GLL170T Operating mode 50 µs 40 mm Operating mode 250 µs 80 mm
