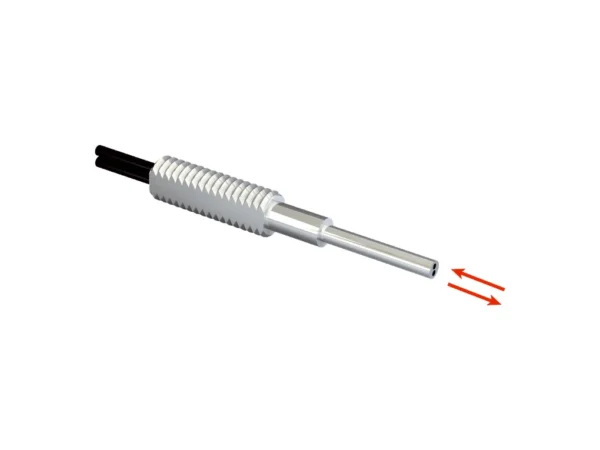

Home Fiber Optik Sensörler LL3-DM03 LIGHT GUIDE – 5308084 🔍 LL3-DM03 LIGHT GUIDE – 5308084 ✉ Teklif Al Teklif Al Stok kodu: 5308084 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve, Long end sleeve, Bendable sleeve Fiber arrangement Monofiber Core structure 2 x Ø 0,5 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 1.5 mm Length of taper ≥ 90 mm Diameter of taper ≥ 1.5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimum bend radius of end sleeve 10 mm Minimal object diameter 0.015 mm Included with delivery Mounting, 2 x M4 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Ideal for small, insufficient objects. Compact head, bendable sleeve Mechanics/electronics Bend radius, fibre-optic cable 15 mm Bend radius, end sleeve 10 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 35 mm Operating mode 70 µs 115 mm Operating mode 250 µs 185 mm Operating mode 500 µs 235 mm Operating mode 1 ms 275 mm Operating mode 2 ms 395 mm Operating mode 8 ms 580 mm Sensing ranges with WLL180T Operating mode 16 µs 10 mm Operating mode 70 µs 25 mm Operating mode 250 µs 45 mm Operating mode 2 ms 90 mm Operating mode 8 ms 170 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 50 mm Sensing ranges with GLL170T Operating mode 50 µs 60 mm Operating mode 250 µs 90 mm İlgili ürünler LL3-LM37150 OPTICAL FIBER L=150MM – 2073496SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361250 OPTICAL FIBER L=1250MM – 2073495SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35750 OPTICAL FIBER L=750MM – 2073490SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31450 OPTICAL FIBER L=450MM – 2073484SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve, Long end sleeve, Bendable sleeve Fiber arrangement Monofiber Core structure 2 x Ø 0,5 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 1.5 mm Length of taper ≥ 90 mm Diameter of taper ≥ 1.5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimum bend radius of end sleeve 10 mm Minimal object diameter 0.015 mm Included with delivery Mounting, 2 x M4 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Ideal for small, insufficient objects. Compact head, bendable sleeve Mechanics/electronics Bend radius, fibre-optic cable 15 mm Bend radius, end sleeve 10 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 35 mm Operating mode 70 µs 115 mm Operating mode 250 µs 185 mm Operating mode 500 µs 235 mm Operating mode 1 ms 275 mm Operating mode 2 ms 395 mm Operating mode 8 ms 580 mm Sensing ranges with WLL180T Operating mode 16 µs 10 mm Operating mode 70 µs 25 mm Operating mode 250 µs 45 mm Operating mode 2 ms 90 mm Operating mode 8 ms 170 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 50 mm Sensing ranges with GLL170T Operating mode 50 µs 60 mm Operating mode 250 µs 90 mm
