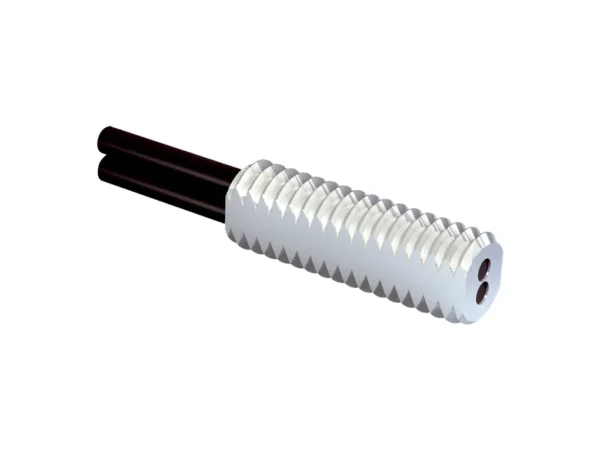

Home Fiber Optik Sensörler LL3-DK66 LIGHT GUIDE – 5313024 🔍 LL3-DK66 LIGHT GUIDE – 5313024 ✉ Teklif Al Teklif Al Stok kodu: 5313024 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure 2 x Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application High flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.015 mm Included with delivery Mounting, 2 x M4 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Highly-flexible, standard, for moving mechanical components Mechanics/electronics Bend radius, fibre-optic cable 2 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 95 mm Operating mode 70 µs 315 mm Operating mode 250 µs 485 mm Operating mode 500 µs 525 mm Operating mode 1 ms 645 mm Operating mode 2 ms 840 mm Operating mode 8 ms 1,130 mm Sensing ranges with WLL180T Operating mode 16 µs 90 mm Operating mode 70 µs 300 mm Operating mode 250 µs 500 mm Operating mode 2 ms 900 mm Operating mode 8 ms 1,400 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 120 mm Sensing ranges with GLL170T Operating mode 50 µs 160 mm Operating mode 250 µs 290 mm İlgili ürünler LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31750 OPTICAL FIBER L=750MM – 2073485SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git SynchLink Fiber 4 Port Splitter Block – 1751-SL4SPALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35750 OPTICAL FIBER L=750MM – 2073490SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure 2 x Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application High flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.015 mm Included with delivery Mounting, 2 x M4 hexagon nut, 2 x washer, adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Highly-flexible, standard, for moving mechanical components Mechanics/electronics Bend radius, fibre-optic cable 2 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 95 mm Operating mode 70 µs 315 mm Operating mode 250 µs 485 mm Operating mode 500 µs 525 mm Operating mode 1 ms 645 mm Operating mode 2 ms 840 mm Operating mode 8 ms 1,130 mm Sensing ranges with WLL180T Operating mode 16 µs 90 mm Operating mode 70 µs 300 mm Operating mode 250 µs 500 mm Operating mode 2 ms 900 mm Operating mode 8 ms 1,400 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 120 mm Sensing ranges with GLL170T Operating mode 50 µs 160 mm Operating mode 250 µs 290 mm
