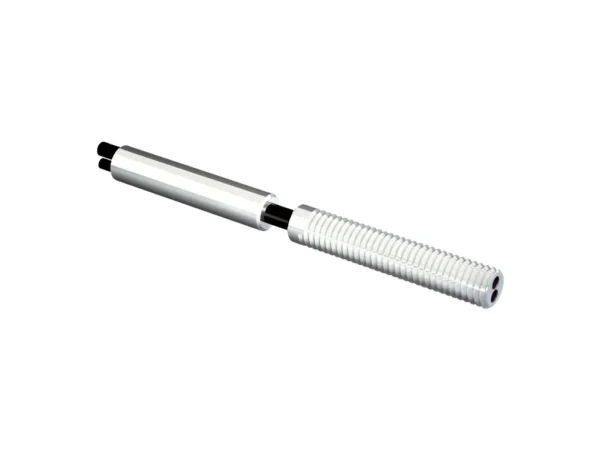

Home Fiber Optik Sensörler LL3-DK21 LIGHT GUIDE – 5313023 🔍 LL3-DK21 LIGHT GUIDE – 5313023 ✉ Teklif Al Teklif Al Stok kodu: 5313023 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 500 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve Fiber arrangement Coaxial arrangement Core structure S: Ø 0,25 mm, R: 10 x Ø 0,125 mm Coaxial arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.013 mm Included with delivery Mounting, 2 x M3 hexagon nut, 2 x washer Compatibility tip adapters Yes Special features Coaxial construction for exact switching, compact head Mechanics/electronics Bend radius, fibre-optic cable 15 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 15 mm Operating mode 70 µs 60 mm Operating mode 250 µs 95 mm Operating mode 500 µs 115 mm Operating mode 1 ms 135 mm Operating mode 2 ms 180 mm Operating mode 8 ms 260 mm Sensing ranges with WLL180T Operating mode 16 µs 14 mm Operating mode 70 µs 45 mm Operating mode 250 µs 75 mm Operating mode 2 ms 135 mm Operating mode 8 ms 200 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 70 mm Sensing ranges with GLL170T Operating mode 50 µs 20 mm Operating mode 250 µs 40 mm İlgili ürünler LL3-LM31750 OPTICAL FIBER L=750MM – 2073485SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31150 OPTICAL FIBER L=150MM – 2073483SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37450 OPTICAL FIBER L=450MM – 2073497SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 500 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve Fiber arrangement Coaxial arrangement Core structure S: Ø 0,25 mm, R: 10 x Ø 0,125 mm Coaxial arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.013 mm Included with delivery Mounting, 2 x M3 hexagon nut, 2 x washer Compatibility tip adapters Yes Special features Coaxial construction for exact switching, compact head Mechanics/electronics Bend radius, fibre-optic cable 15 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 15 mm Operating mode 70 µs 60 mm Operating mode 250 µs 95 mm Operating mode 500 µs 115 mm Operating mode 1 ms 135 mm Operating mode 2 ms 180 mm Operating mode 8 ms 260 mm Sensing ranges with WLL180T Operating mode 16 µs 14 mm Operating mode 70 µs 45 mm Operating mode 250 µs 75 mm Operating mode 2 ms 135 mm Operating mode 8 ms 200 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 70 mm Sensing ranges with GLL170T Operating mode 50 µs 20 mm Operating mode 250 µs 40 mm
