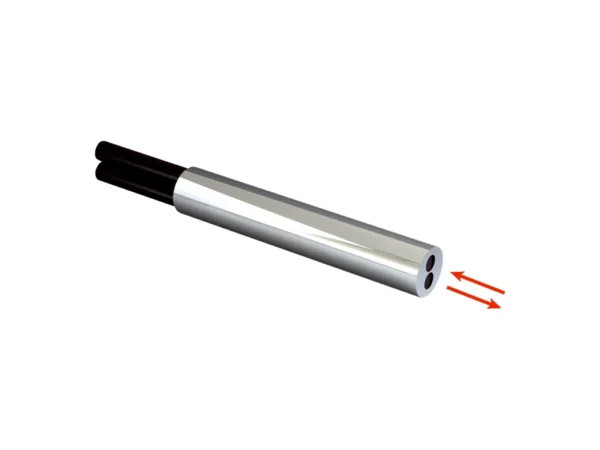

Home Fiber Optik Sensörler LL3-DK04 LIGHT GUIDE – 5313020 🔍 LL3-DK04 LIGHT GUIDE – 5313020 ✉ Teklif Al Teklif Al Stok kodu: 5313020 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, KTL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 3 mm Fiber-optic head design Smooth sleeve Fiber arrangement Monofiber Core structure 2 x Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Lcd / clear material / semiconductor Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.015 mm Included with delivery Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Standard, compact, thin end sleeve, maximum sensing range Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 120 mm Operating mode 70 µs 300 mm Operating mode 250 µs 500 mm Operating mode 500 µs 600 mm Operating mode 1 ms 700 mm Operating mode 2 ms 800 mm Operating mode 8 ms 1,250 mm Sensing ranges with WLL180T Operating mode 16 µs 100 mm Operating mode 70 µs 300 mm Operating mode 250 µs 500 mm Operating mode 2 ms 900 mm Operating mode 8 ms 1,400 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 170 mm Sensing ranges with GLL170T Operating mode 50 µs 180 mm Operating mode 250 µs 310 mm Sensing ranges with KTL180 Operating mode 16 µs 2 mm Operating mode 200 µs 2 mm İlgili ürünler SynchLink Fiber 4 Port Splitter Block – 1751-SL4SPALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37750 OPTICAL FIBER L=750MM – 2073498SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31150 OPTICAL FIBER L=150MM – 2073483SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, KTL180, WLL80 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 3 mm Fiber-optic head design Smooth sleeve Fiber arrangement Monofiber Core structure 2 x Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Lcd / clear material / semiconductor Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.015 mm Included with delivery Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Special features Standard, compact, thin end sleeve, maximum sensing range Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 120 mm Operating mode 70 µs 300 mm Operating mode 250 µs 500 mm Operating mode 500 µs 600 mm Operating mode 1 ms 700 mm Operating mode 2 ms 800 mm Operating mode 8 ms 1,250 mm Sensing ranges with WLL180T Operating mode 16 µs 100 mm Operating mode 70 µs 300 mm Operating mode 250 µs 500 mm Operating mode 2 ms 900 mm Operating mode 8 ms 1,400 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 170 mm Sensing ranges with GLL170T Operating mode 50 µs 180 mm Operating mode 250 µs 310 mm Sensing ranges with KTL180 Operating mode 16 µs 2 mm Operating mode 200 µs 2 mm
