Name: SICK 5325992 | Fiber Optik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 5325992
Price: 4500.00 TRY
Availability: InStock

Tecnichal data

Features

Device type	Fibers
Functional principle	Proximity system
For fiber-optic sensor	GLL170(T), WLL180, WLL24 Ex, WLL80
Fiber length	1,000 mm
Fiber material	Polymethylmethacrylat (PMMA)
Jacket material	Stainless steel
Fiber head material	Copper-zinc alloy (CuZn)
Outer diameter, fiber-optic cable connection	2.2 mm
Fiber-optic cable cuttable	✔
Thread diameter (housing)	M6
Fiber-optic head design	Threaded sleeve
Fiber arrangement	Multi-fiber – fiber bundle
Core structure	S: 9 x Ø 0,25 mm, R: 9 x Ø 0,25 mm Multi-fiber – fiber bundle
Angle of dispersion < 60°	No
Compatibility with infrared light (1,450 nm)	No
Highly flexible/elastic fibers (bend radius 1–4 mm)	No
Adapter end sleeves required	No
Angle of dispersion	60°
Integrated lens	No
Minimal object diameter	0.02 mm
Included with delivery	Mounting, 2 x M6 hexagon nut, 1 x washer
Compatibility tip adapters	No

Mechanics/electronics

Bend radius, fibre-optic cable	10 mm
Ambient operating temperature	–40 °C … +70 °C

Classifications

Sensing ranges with WLL80

Sensing ranges with WLL180T

Operating mode 16 µs	38 mm
Operating mode 70 µs	120 mm
Operating mode 250 µs	230 mm
Operating mode 2 ms	460 mm
Operating mode 8 ms	490 mm
Note	Sensing ranges related to fiber-optic sensors with type of light: visible red light

Sensing ranges with GLL170

Operating mode 250 µs

150 mm

Sensing ranges with GLL170T

Operating mode 50 µs	80 mm
Operating mode 250 µs	160 mm

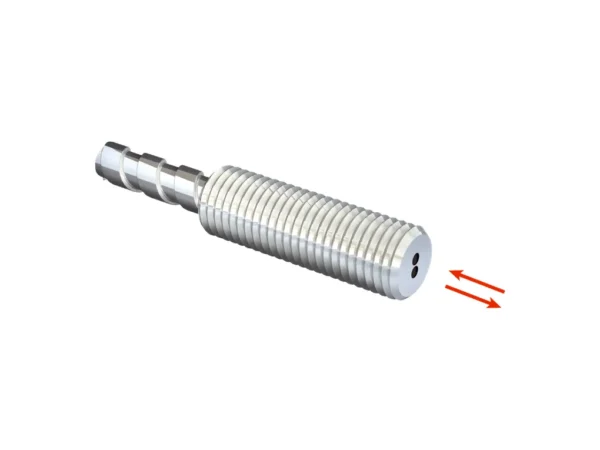

LL3-DJ02 LIGHT GUIDE THREAD TYPE – 5325992
