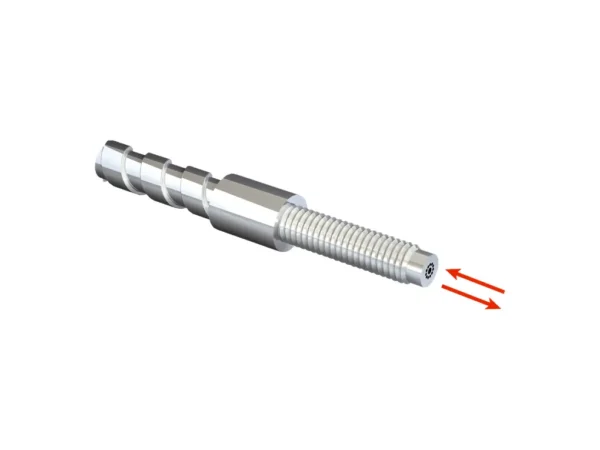

Home Fiber Optik Sensörler LL3-DJ01 LIGHT GUIDE THREAD TYPE – 5325989 🔍 LL3-DJ01 LIGHT GUIDE THREAD TYPE – 5325989 ✉ Teklif Al Teklif Al Stok kodu: 5325989 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 1,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Stainless steel Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve Fiber arrangement Coaxial arrangement Core structure S: Ø 0,5 mm, R: 9 x Ø 0,25 mm Coaxial arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.02 mm Included with delivery Mounting, 2 x M3 hexagon nut, 1 x washer, adapter sleeves, 1 x BF-WLL160-10 (1.0 mm) adapter sleeve, 1 x BF-WLL160-13 (1.3 mm) adapter sleeve, FC fiber cutter (5304141) Compatibility tip adapters Yes Mechanics/electronics Bend radius, fibre-optic cable 10 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 25 mm Operating mode 70 µs 100 mm Operating mode 250 µs 160 mm Operating mode 500 µs 200 mm Operating mode 1 ms 225 mm Operating mode 2 ms 310 mm Operating mode 8 ms 420 mm Sensing ranges with WLL180T Operating mode 16 µs 14 mm Operating mode 70 µs 49 mm Operating mode 250 µs 99 mm Operating mode 2 ms 190 mm Operating mode 8 ms 210 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 70 mm Sensing ranges with GLL170T Operating mode 50 µs 30 mm Operating mode 250 µs 70 mm İlgili ürünler LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37150 OPTICAL FIBER L=150MM – 2073496SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37450 OPTICAL FIBER L=450MM – 2073497SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35150 OPTICAL FIBER L=150MM – 2073488SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 1,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Stainless steel Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M3 Fiber-optic head design Threaded sleeve Fiber arrangement Coaxial arrangement Core structure S: Ø 0,5 mm, R: 9 x Ø 0,25 mm Coaxial arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Minimal object diameter 0.02 mm Included with delivery Mounting, 2 x M3 hexagon nut, 1 x washer, adapter sleeves, 1 x BF-WLL160-10 (1.0 mm) adapter sleeve, 1 x BF-WLL160-13 (1.3 mm) adapter sleeve, FC fiber cutter (5304141) Compatibility tip adapters Yes Mechanics/electronics Bend radius, fibre-optic cable 10 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 25 mm Operating mode 70 µs 100 mm Operating mode 250 µs 160 mm Operating mode 500 µs 200 mm Operating mode 1 ms 225 mm Operating mode 2 ms 310 mm Operating mode 8 ms 420 mm Sensing ranges with WLL180T Operating mode 16 µs 14 mm Operating mode 70 µs 49 mm Operating mode 250 µs 99 mm Operating mode 2 ms 190 mm Operating mode 8 ms 210 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 70 mm Sensing ranges with GLL170T Operating mode 50 µs 30 mm Operating mode 250 µs 70 mm
