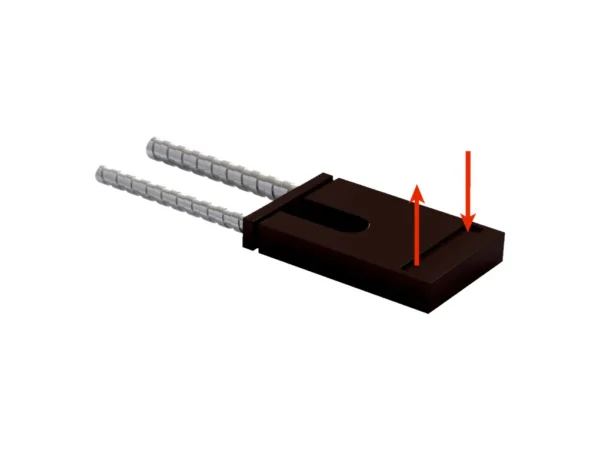

Home Fiber Optik Sensörler LL3-DH11 LIGHT GUIDE HEAT RESIST. – 5326024 🔍 LL3-DH11 LIGHT GUIDE HEAT RESIST. – 5326024 ✉ Teklif Al Teklif Al Stok kodu: 5326024 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex Fiber length 3,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Stainless steel Fiber head material Polyphenylensulfid (PPS) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type Fiber arrangement Monofiber Core structure S: Ø 1,2 mm R: Ø 1,5 mm Monofiber Compatibility with infrared light (1,450 nm) No Application Heat-resistant (≥100°C) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Minimal object diameter 0.02 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –20 °C … +250 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 8 mm … 19 mm Operating mode 70 µs 6 mm … 29 mm Operating mode 250 µs 4 mm … 34 mm Operating mode 2 ms 339 mm Operating mode 8 ms 2 mm … 42 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 7.5 mm … 26 mm Sensing ranges with GLL170T Operating mode 50 µs 11 mm … 14.5 mm Operating mode 250 µs 5.6 mm … 19 mm İlgili ürünler LL3-LM35450 OPTICAL FIBER L=450MM – 2073489SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31750 OPTICAL FIBER L=750MM – 2073485SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35150 OPTICAL FIBER L=150MM – 2073488SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex Fiber length 3,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Stainless steel Fiber head material Polyphenylensulfid (PPS) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type Fiber arrangement Monofiber Core structure S: Ø 1,2 mm R: Ø 1,5 mm Monofiber Compatibility with infrared light (1,450 nm) No Application Heat-resistant (≥100°C) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Minimal object diameter 0.02 mm Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –20 °C … +250 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 8 mm … 19 mm Operating mode 70 µs 6 mm … 29 mm Operating mode 250 µs 4 mm … 34 mm Operating mode 2 ms 339 mm Operating mode 8 ms 2 mm … 42 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 7.5 mm … 26 mm Sensing ranges with GLL170T Operating mode 50 µs 11 mm … 14.5 mm Operating mode 250 µs 5.6 mm … 19 mm
