Name: SICK 5326025 | Fiber Optik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 5326025
Price: 4500.00 TRY
Availability: InStock

Tecnichal data

Features

Device type	Fibers
Functional principle	Proximity system
For fiber-optic sensor	GLL170(T), WLL180, WLL24 Ex
Fiber length	2,000 mm
Fiber material	Silicium (Si)
Jacket material	Perfluoralkoxy-Polymere (PFA)
Fiber head material	Stainless steel
Outer diameter, fiber-optic cable connection	2.2 mm
Fiber-optic cable cuttable	✔
Fiber-optic head design	Flat type
Fiber arrangement	Monofiber
Core structure	2 x Ø 1,5 mm Monofiber
Compatibility with infrared light (1,450 nm)	Yes
Application	Lcd / clear material / semiconductor
Highly flexible/elastic fibers (bend radius 1–4 mm)	No
Adapter end sleeves required	No
Minimal object diameter	0.02 mm
Compatibility tip adapters	No

Mechanics/electronics

Bend radius, fibre-optic cable	25 mm
Ambient operating temperature	–60 °C … +180 °C

Classifications

Sensing ranges with WLL80

Sensing ranges with WLL180T

Operating mode 16 µs	2 mm … 5 mm
Operating mode 70 µs	0 mm … 11 mm
Operating mode 250 µs	0 mm … 22 mm
Operating mode 2 ms	0 mm … 30 mm
Operating mode 8 ms	0 mm … 38 mm
Note	Sensing ranges related to fiber-optic sensors with type of light: visible red light

Sensing ranges with GLL170

Operating mode 250 µs

7 mm

Sensing ranges with GLL170T

Operating mode 50 µs	6 mm
Operating mode 250 µs	12 mm

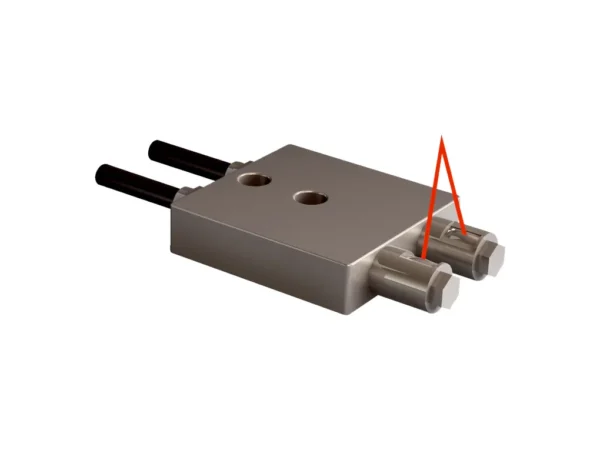

LL3-DH08 LIGHT GUIDE HEAT RESIST. – 5326025
