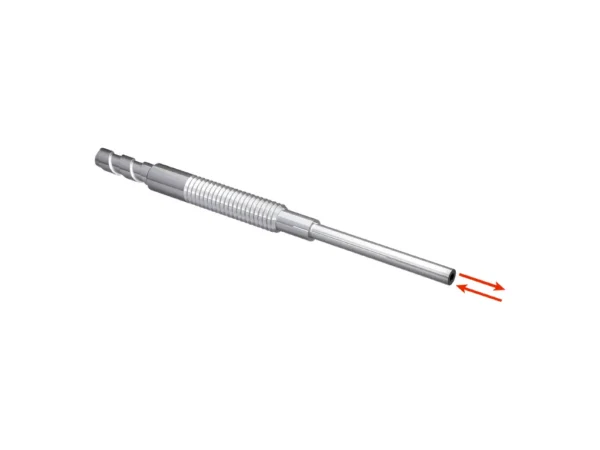

Home Fiber Optik Sensörler LL3-DH05 LIGHT GUIDE HEAT RESIST. – 5326021 🔍 LL3-DH05 LIGHT GUIDE HEAT RESIST. – 5326021 ✉ Teklif Al Teklif Al Stok kodu: 5326021 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 1,000 mm Fiber material Glass Jacket material Stainless steel Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve, Long end sleeve, Bendable sleeve Fiber arrangement Multi-fiber – fiber bundle Core structure S: 380 x Ø 0,5 µm R: 380 x Ø 0,5 µm Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.1 mm Length of taper ≥ 90 mm Diameter of taper ≥ 2.1 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimum bend radius of end sleeve 10 mm Minimal object diameter 0.02 mm Included with delivery Mounting, 2 x M4 hexagon nut, 1 x washer Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Bend radius, end sleeve 10 mm Ambient operating temperature –30 °C … +350 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 120 mm Operating mode 70 µs 300 mm Operating mode 250 µs 520 mm Operating mode 500 µs 600 mm Operating mode 1 ms 700 mm Operating mode 2 ms 1,050 mm Operating mode 8 ms 1,260 mm Sensing ranges with WLL180T Operating mode 16 µs 55 mm Operating mode 70 µs 220 mm Operating mode 250 µs 580 mm Operating mode 2 ms 1,170 mm Operating mode 8 ms 1,240 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 290 mm Sensing ranges with GLL170T Operating mode 50 µs 140 mm Operating mode 250 µs 420 mm İlgili ürünler LL3-LM361250 OPTICAL FIBER L=1250MM – 2073495SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git Photo Sensor, Background Suppression, Infrared LED, Complementary Light or Dark Operate, Auto PNP or NPN Output with IO-Link, No Physical Adjustment, 400 mm Sensing Range, 4-pin DC Micro(M12) on a 150 mm (6 in.) Pigtail – 42AF-B1MAB1-F4ALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31450 OPTICAL FIBER L=450MM – 2073484SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 1,000 mm Fiber material Glass Jacket material Stainless steel Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M4 Fiber-optic head design Threaded sleeve, Long end sleeve, Bendable sleeve Fiber arrangement Multi-fiber – fiber bundle Core structure S: 380 x Ø 0,5 µm R: 380 x Ø 0,5 µm Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.1 mm Length of taper ≥ 90 mm Diameter of taper ≥ 2.1 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimum bend radius of end sleeve 10 mm Minimal object diameter 0.02 mm Included with delivery Mounting, 2 x M4 hexagon nut, 1 x washer Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Bend radius, end sleeve 10 mm Ambient operating temperature –30 °C … +350 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 120 mm Operating mode 70 µs 300 mm Operating mode 250 µs 520 mm Operating mode 500 µs 600 mm Operating mode 1 ms 700 mm Operating mode 2 ms 1,050 mm Operating mode 8 ms 1,260 mm Sensing ranges with WLL180T Operating mode 16 µs 55 mm Operating mode 70 µs 220 mm Operating mode 250 µs 580 mm Operating mode 2 ms 1,170 mm Operating mode 8 ms 1,240 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 290 mm Sensing ranges with GLL170T Operating mode 50 µs 140 mm Operating mode 250 µs 420 mm
