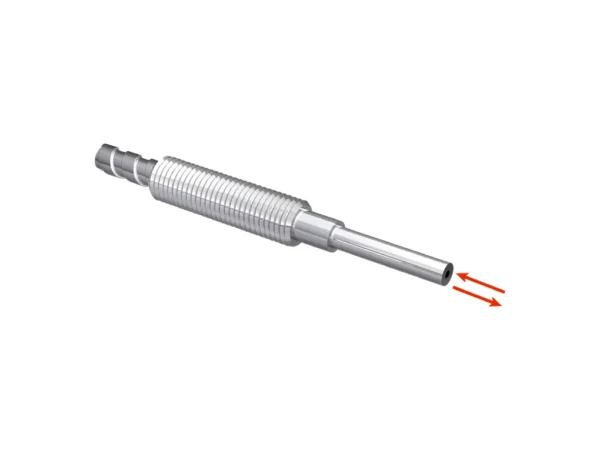

Home Fiber Optik Sensörler LL3-DH04 LIGHT GUIDE HEAT RESIST. – 5326022 🔍 LL3-DH04 LIGHT GUIDE HEAT RESIST. – 5326022 ✉ Teklif Al Teklif Al Stok kodu: 5326022 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Glass Jacket material Stainless steel Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve, Long end sleeve, Bendable sleeve Array width 8.75 mm Fiber arrangement Multi-fiber – fiber bundle Core structure S: 380 x Ø 0,5 µm R: 380 x Ø 0,5 µm Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.8 mm Length of taper ≥ 60 mm Diameter of taper ≥ 2.8 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimum bend radius of end sleeve 10 mm Minimal object diameter 0.02 mm Included with delivery Mounting, 2 x M6 hexagon nut, 1 x washer Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Bend radius, end sleeve 10 mm Ambient operating temperature –30 °C … +350 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 120 mm Operating mode 70 µs 300 mm Operating mode 250 µs 500 mm Operating mode 500 µs 595 mm Operating mode 1 ms 665 mm Operating mode 2 ms 900 mm Operating mode 8 ms 1,090 mm Sensing ranges with WLL180T Operating mode 16 µs 65 mm Operating mode 70 µs 225 mm Operating mode 250 µs 500 mm Operating mode 2 ms 1,000 mm Operating mode 8 ms 1,060 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 150 mm Sensing ranges with GLL170T Operating mode 50 µs 150 mm Operating mode 250 µs 360 mm İlgili ürünler LL3-LM37150 OPTICAL FIBER L=150MM – 2073496SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37750 OPTICAL FIBER L=750MM – 2073498SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git ControlNet Fiber Ring Ex Long Repeater – 1786-RPFRXLALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361000 OPTICAL FIBER L=1000MM – 2073494SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Glass Jacket material Stainless steel Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve, Long end sleeve, Bendable sleeve Array width 8.75 mm Fiber arrangement Multi-fiber – fiber bundle Core structure S: 380 x Ø 0,5 µm R: 380 x Ø 0,5 µm Multi-fiber – fiber bundle Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.8 mm Length of taper ≥ 60 mm Diameter of taper ≥ 2.8 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimum bend radius of end sleeve 10 mm Minimal object diameter 0.02 mm Included with delivery Mounting, 2 x M6 hexagon nut, 1 x washer Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Bend radius, end sleeve 10 mm Ambient operating temperature –30 °C … +350 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 120 mm Operating mode 70 µs 300 mm Operating mode 250 µs 500 mm Operating mode 500 µs 595 mm Operating mode 1 ms 665 mm Operating mode 2 ms 900 mm Operating mode 8 ms 1,090 mm Sensing ranges with WLL180T Operating mode 16 µs 65 mm Operating mode 70 µs 225 mm Operating mode 250 µs 500 mm Operating mode 2 ms 1,000 mm Operating mode 8 ms 1,060 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 150 mm Sensing ranges with GLL170T Operating mode 50 µs 150 mm Operating mode 250 µs 360 mm
