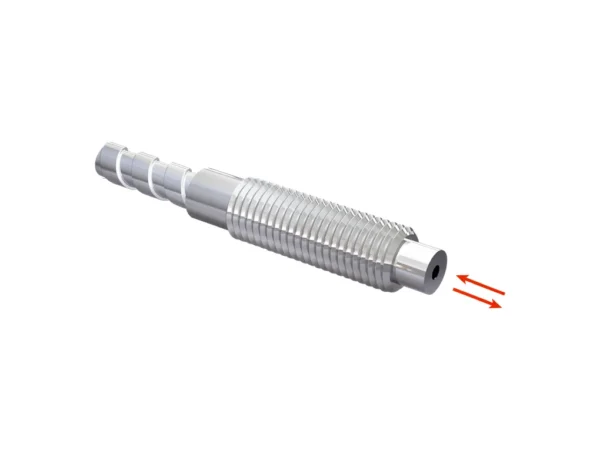

Home Fiber Optik Sensörler LL3-DH03 LIGHT GUIDE – 5324787 🔍 LL3-DH03 LIGHT GUIDE – 5324787 ✉ Teklif Al Teklif Al Stok kodu: 5324787 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Glass Jacket material Stainless steel Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve Fiber arrangement Coaxial arrangement Core structure 2 x Ø 1,3 mm Coaxial arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 4 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.02 mm Included with delivery Mounting, 2 x M6 hexagon nut, 1 x washer Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –30 °C … +350 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 115 mm Operating mode 70 µs 300 mm Operating mode 250 µs 500 mm Operating mode 500 µs 580 mm Operating mode 1 ms 655 mm Operating mode 2 ms 890 mm Operating mode 8 ms 1,070 mm Sensing ranges with WLL180T Operating mode 16 µs 55 mm Operating mode 70 µs 220 mm Operating mode 250 µs 490 mm Operating mode 2 ms 990 mm Operating mode 8 ms 1,050 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 230 mm Sensing ranges with GLL170T Operating mode 50 µs 140 mm Operating mode 250 µs 350 mm İlgili ürünler LL3-LM37150 OPTICAL FIBER L=150MM – 2073496SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git SynchLink Fiber 4 Port Splitter Block – 1751-SL4SPALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git Networks and Communication Products, ControlNet Medium-distance Fiber Module – 1786-RPFMALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35750 OPTICAL FIBER L=750MM – 2073490SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Fiber material Glass Jacket material Stainless steel Fiber head material Copper-zinc alloy (CuZn) Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve Fiber arrangement Coaxial arrangement Core structure 2 x Ø 1,3 mm Coaxial arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) Yes Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 4 mm Length of taper ≥ 3 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.02 mm Included with delivery Mounting, 2 x M6 hexagon nut, 1 x washer Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –30 °C … +350 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 115 mm Operating mode 70 µs 300 mm Operating mode 250 µs 500 mm Operating mode 500 µs 580 mm Operating mode 1 ms 655 mm Operating mode 2 ms 890 mm Operating mode 8 ms 1,070 mm Sensing ranges with WLL180T Operating mode 16 µs 55 mm Operating mode 70 µs 220 mm Operating mode 250 µs 490 mm Operating mode 2 ms 990 mm Operating mode 8 ms 1,050 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 230 mm Sensing ranges with GLL170T Operating mode 50 µs 140 mm Operating mode 250 µs 350 mm
