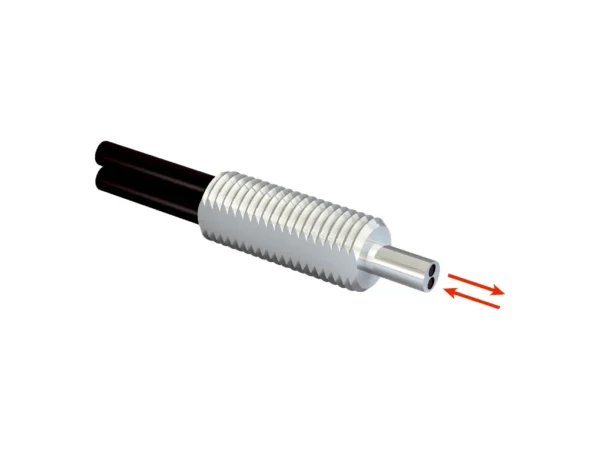

Home Fiber Optik Sensörler LL3-DH02 LIGHT GUIDE – 5308092 🔍 LL3-DH02 LIGHT GUIDE – 5308092 ✉ Teklif Al Teklif Al Stok kodu: 5308092 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Jacket material Polyvinylchlorid (PVC) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure 2 x Ø 1,0 mm Monofiber Angle of dispersion < 60° No Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.5 mm Length of taper ≥ 5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.015 mm Included with delivery Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141) Compatibility tip adapters No Special features Special applications: temperature-resistant up to 100 °C Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +100 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 110 mm Operating mode 70 µs 280 mm Operating mode 250 µs 410 mm Operating mode 500 µs 450 mm Operating mode 1 ms 495 mm Operating mode 2 ms 635 mm Operating mode 8 ms 890 mm Sensing ranges with WLL180T Operating mode 16 µs 70 mm Operating mode 70 µs 230 mm Operating mode 250 µs 350 mm Operating mode 2 ms 600 mm Operating mode 8 ms 1,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 90 mm Sensing ranges with GLL170T Operating mode 50 µs 110 mm Operating mode 250 µs 220 mm İlgili ürünler LL3-LM361000 OPTICAL FIBER L=1000MM – 2073494SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM311500 OPTICAL FIBER L=1500MM – 2073486SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37450 OPTICAL FIBER L=450MM – 2073497SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35450 OPTICAL FIBER L=450MM – 2073489SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 2,000 mm Jacket material Polyvinylchlorid (PVC) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve Fiber arrangement Monofiber Core structure 2 x Ø 1,0 mm Monofiber Angle of dispersion < 60° No Application Heat-resistant (≥100°C) Diameter/thread size from 2 mm taper ≥ 2.5 mm Length of taper ≥ 5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.015 mm Included with delivery Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141) Compatibility tip adapters No Special features Special applications: temperature-resistant up to 100 °C Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +100 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 110 mm Operating mode 70 µs 280 mm Operating mode 250 µs 410 mm Operating mode 500 µs 450 mm Operating mode 1 ms 495 mm Operating mode 2 ms 635 mm Operating mode 8 ms 890 mm Sensing ranges with WLL180T Operating mode 16 µs 70 mm Operating mode 70 µs 230 mm Operating mode 250 µs 350 mm Operating mode 2 ms 600 mm Operating mode 8 ms 1,000 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 90 mm Sensing ranges with GLL170T Operating mode 50 µs 110 mm Operating mode 250 µs 220 mm
