Name: SICK 5308091 | Fiber Optik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 5308091
Price: 4500.00 TRY
Availability: InStock

Tecnichal data

Features

Device type	Fibers
Functional principle	Proximity system
For fiber-optic sensor	GLL170(T), WLL180, WLL80
Fiber length	2,000 mm
Jacket material	Fluorethylenpropylen (FEP)
Fiber head material	Stainless steel 1,4305
Outer diameter, fiber-optic cable connection	2.2 mm
Thread diameter (housing)	M6
Fiber-optic head design	Threaded sleeve
Fiber arrangement	Monofiber
Core structure	2 x Ø 1,5 mm Monofiber
Angle of dispersion < 60°	No
Application	Heat-resistant (≥100°C)
Diameter/thread size from 2 mm taper	≥ 4.9 mm
Length of taper	≥ 3 mm
Highly flexible/elastic fibers (bend radius 1–4 mm)	No
Adapter end sleeves required	No
Angle of dispersion	60°
Integrated lens	No
Minimal object diameter	0.015 mm
Included with delivery	Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141)
Compatibility tip adapters	No
Special features	Special applications: temperature-resistant up to 180 °C, maximum sensing range

Mechanics/electronics

Bend radius, fibre-optic cable	35 mm
Ambient operating temperature	–40 °C … +180 °C

Classifications

Sensing ranges with WLL80

Sensing ranges with WLL180T

Operating mode 16 µs	120 mm
Operating mode 70 µs	350 mm
Operating mode 250 µs	600 mm
Operating mode 2 ms	980 mm
Operating mode 8 ms	1,500 mm
Note	Sensing ranges related to fiber-optic sensors with type of light: visible red light

Sensing ranges with GLL170

Operating mode 250 µs

150 mm

Sensing ranges with GLL170T

Operating mode 50 µs	180 mm
Operating mode 250 µs	320 mm

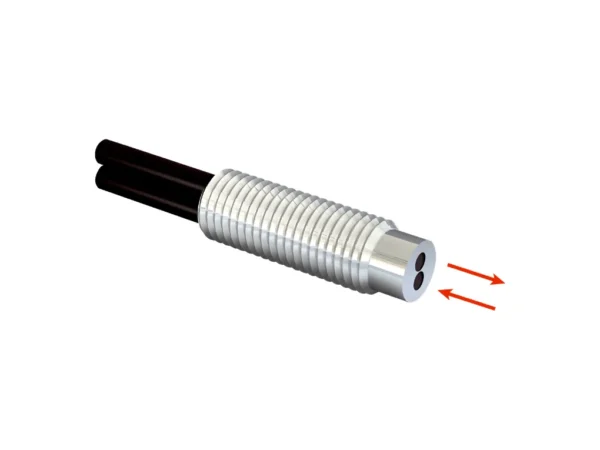

LL3-DH01 LIGHT GUIDE – 5308091
