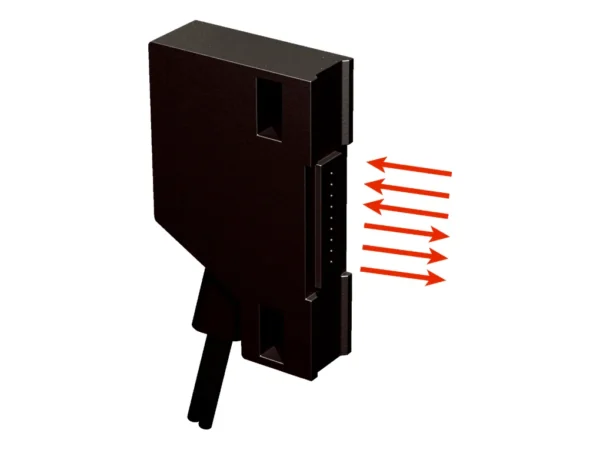

Home Fiber Optik Sensörler LL3-DF075000 LIGHT GUIDE – 5338077 🔍 LL3-DF075000 LIGHT GUIDE – 5338077 ✉ Teklif Al Teklif Al Stok kodu: 5338077 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180 Fiber length 5,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Acrylnitril-Butadien-Styrol (ABS) Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Array Array width 9 mm Fiber arrangement Multi-fiber – linear arrangement Core structure S : 9 x 0,24 mm R : 9 x 0,24 mm Multi-fiber – linear arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Liquid Level (Pipe-mounting), Area detection Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Included with delivery Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 10 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 İlgili ürünler LL3-LM36450 OPTICAL FIBER L=450MM – 2073492SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31150 OPTICAL FIBER L=150MM – 2073483SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git ControlNet Fiber Ring Ex Long Repeater – 1786-RPFRXLALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361250 OPTICAL FIBER L=1250MM – 2073495SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180 Fiber length 5,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Acrylnitril-Butadien-Styrol (ABS) Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Array Array width 9 mm Fiber arrangement Multi-fiber – linear arrangement Core structure S : 9 x 0,24 mm R : 9 x 0,24 mm Multi-fiber – linear arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Liquid Level (Pipe-mounting), Area detection Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Included with delivery Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 10 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528
