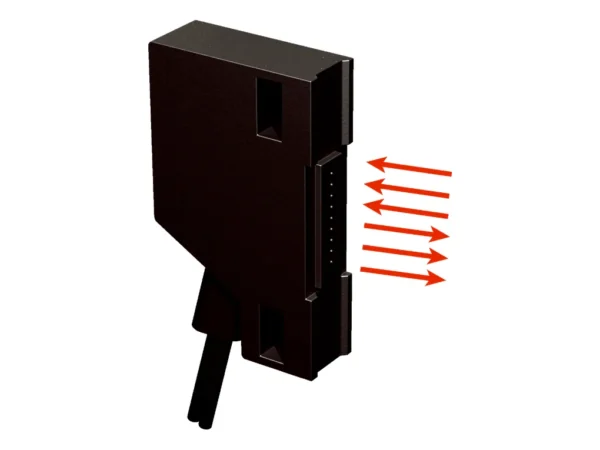

Name: SICK 5326033 | Fiber Optik Sensör | Royal Endüstriyel
Brand: SICK
SKU: 5326033
Price: 4500.00 TRY
Availability: InStock

Tecnichal data

Features

Device type	Fibers
Functional principle	Proximity system
For fiber-optic sensor	GLL170(T), WLL180
Fiber length	2,000 mm
Fiber material	Polymethylmethacrylat (PMMA)
Jacket material	Polyethylen (PE)
Fiber head material	Acrylnitril-Butadien-Styrol (ABS)
Outer diameter, fiber-optic cable connection	1.3 mm
Fiber-optic cable cuttable	✔
Fiber-optic head design	Array
Array width	9 mm
Fiber arrangement	Multi-fiber – linear arrangement
Core structure	S : 9 x 0,24 mm R : 9 x 0,24 mm Multi-fiber – linear arrangement
Angle of dispersion < 60°	No
Compatibility with infrared light (1,450 nm)	No
Application	Liquid Level (Pipe-mounting), Area detection
Highly flexible/elastic fibers (bend radius 1–4 mm)	No
Adapter end sleeves required	Yes
Angle of dispersion	60°
Integrated lens	No
Included with delivery	Adapter sleeves, BF-WLL160-13 (1.3 mm) adapter sleeves, FC fiber cutter (5304141)
Compatibility tip adapters	No

Mechanics/electronics

Bend radius, fibre-optic cable	10 mm
Ambient operating temperature	–40 °C … +70 °C

Classifications
