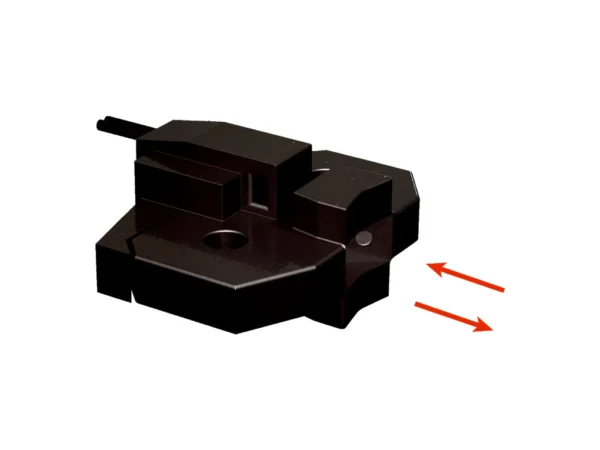

Home Fiber Optik Sensörler LL3-DF04 LIGHT GUIDE LEVEL DETECT. – 5326035 🔍 LL3-DF04 LIGHT GUIDE LEVEL DETECT. – 5326035 ✉ Teklif Al Teklif Al Stok kodu: 5326035 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polyetherimid (PEI) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Special design Fiber arrangement Monofiber Core structure 2 x Ø 0,5 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Liquid Level (Pipe-mounting) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Included with delivery Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141), protective cladding for fiber head Compatibility tip adapters No Special features For PFA / transparent pipe of the outer diameter between 6-26 mm with width between of 1-3 mm Mechanics/electronics Bend radius, fibre-optic cable 10 mm Ambient operating temperature –40 °C … +100 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 İlgili ürünler LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31450 OPTICAL FIBER L=450MM – 2073484SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37450 OPTICAL FIBER L=450MM – 2073497SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polyetherimid (PEI) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Special design Fiber arrangement Monofiber Core structure 2 x Ø 0,5 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Liquid Level (Pipe-mounting) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Angle of dispersion 60° Integrated lens No Included with delivery Adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141), protective cladding for fiber head Compatibility tip adapters No Special features For PFA / transparent pipe of the outer diameter between 6-26 mm with width between of 1-3 mm Mechanics/electronics Bend radius, fibre-optic cable 10 mm Ambient operating temperature –40 °C … +100 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528
