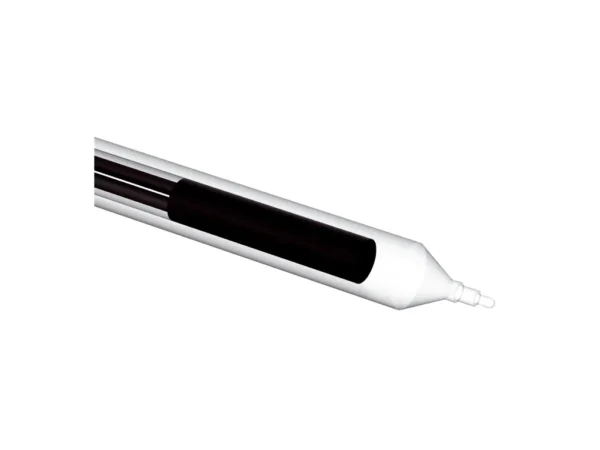

Home Fiber Optik Sensörler LL3-DF03 LIGHT GUIDE – 5336766 🔍 LL3-DF03 LIGHT GUIDE – 5336766 ✉ Teklif Al Teklif Al Stok kodu: 5336766 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Perfluoralkoxy-Polymere (PFA) Fiber head material Perfluoralkoxy-Polymere (PFA) Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Special design Fiber arrangement Monofiber Core structure 2 x Ø 1,0 mm Monofiber Compatibility with infrared light (1,450 nm) No Application Liquid Level (Immersion) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Compatibility tip adapters No Special features Special applications: level switch for liquids, chemically resistant Mechanics/electronics Bend radius, fibre-optic cable 60 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 İlgili ürünler LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361250 OPTICAL FIBER L=1250MM – 2073495SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git ControlNet Fiber Ring Ex Long Repeater – 1786-RPFRXLALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180 Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Perfluoralkoxy-Polymere (PFA) Fiber head material Perfluoralkoxy-Polymere (PFA) Outer diameter, fiber-optic cable connection 1.3 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Special design Fiber arrangement Monofiber Core structure 2 x Ø 1,0 mm Monofiber Compatibility with infrared light (1,450 nm) No Application Liquid Level (Immersion) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required Yes Compatibility tip adapters No Special features Special applications: level switch for liquids, chemically resistant Mechanics/electronics Bend radius, fibre-optic cable 60 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528
