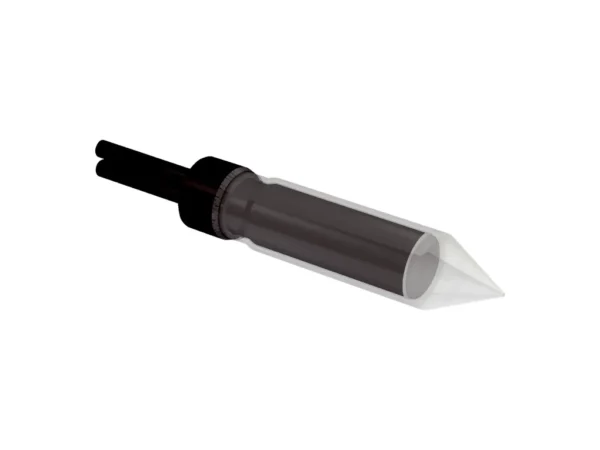

Home Fiber Optik Sensörler LL3-DF02-S01 LIGHT GUIDE – 5321924 🔍 LL3-DF02-S01 LIGHT GUIDE – 5321924 ✉ Teklif Al Teklif Al Stok kodu: 5321924 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material PE Fiber head material Perfluoralkoxy-Polymere (PFA) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 5 mm Fiber-optic head design Special design Fiber arrangement Monofiber Core structure 2 x Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Liquid Level (Immersion) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Included with delivery FC fiber cutter (5304141), protective cladding for fiber head Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 30 mm Ambient operating temperature –40 °C … +105 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 İlgili ürünler LL3-LM35750 OPTICAL FIBER L=750MM – 2073490SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-DL07 – 1094996SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36750 OPTICAL FIBER L=750MM – 2073493SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36450 OPTICAL FIBER L=450MM – 2073492SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex Fiber length 2,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material PE Fiber head material Perfluoralkoxy-Polymere (PFA) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Smooth sleeve diameter (greatest diameter) 5 mm Fiber-optic head design Special design Fiber arrangement Monofiber Core structure 2 x Ø 1,0 mm Monofiber Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Application Liquid Level (Immersion) Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Included with delivery FC fiber cutter (5304141), protective cladding for fiber head Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 30 mm Ambient operating temperature –40 °C … +105 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528
