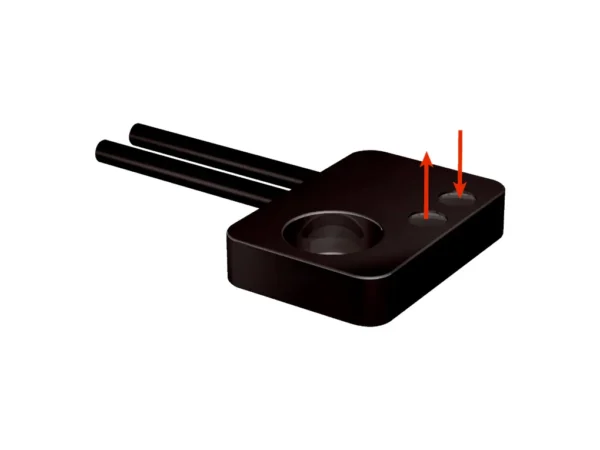

Home Fiber Optik Sensörler LL3-DE01 LIGHT GUIDE – 5325285 🔍 LL3-DE01 LIGHT GUIDE – 5325285 ✉ Teklif Al Teklif Al Stok kodu: 5325285 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 1,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polycarbonat (PC) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection Fiber arrangement Multi-fiber Core structure S: 151 x Ø 0,05 mm R: 151 x Ø 0,05 mm Multi-fiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application High flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 26.99° Integrated lens Yes Minimal object diameter 0.16 mm Included with delivery Mounting, 4 x M2 hexagon nut, 8 x washer, 4 x M2 Phillips-head screw, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 1 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 20 mm Operating mode 70 µs 75 mm Operating mode 250 µs 135 mm Operating mode 500 µs 160 mm Operating mode 1 ms 170 mm Operating mode 2 ms 215 mm Operating mode 8 ms 310 mm Sensing ranges with WLL180T Operating mode 16 µs 11 mm Operating mode 70 µs 38 mm Operating mode 250 µs 78 mm Operating mode 2 ms 150 mm Operating mode 8 ms 160 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 40 mm Sensing ranges with GLL170T Operating mode 50 µs 20 mm Operating mode 250 µs 50 mm İlgili ürünler Photo Sensor, Background Suppression, Infrared LED, Complementary Light or Dark Operate, Auto PNP or NPN Output with IO-Link, No Physical Adjustment, 400 mm Sensing Range, 4-pin DC Micro(M12) on a 150 mm (6 in.) Pigtail – 42AF-B1MAB1-F4ALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31150 OPTICAL FIBER L=150MM – 2073483SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-DL07 – 1094996SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL80 Fiber length 1,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Polycarbonat (PC) Outer diameter, fiber-optic cable connection 1 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection Fiber arrangement Multi-fiber Core structure S: 151 x Ø 0,05 mm R: 151 x Ø 0,05 mm Multi-fiber Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application High flexible (static) Highly flexible/elastic fibers (bend radius 1–4 mm) Yes Adapter end sleeves required Yes Angle of dispersion 26.99° Integrated lens Yes Minimal object diameter 0.16 mm Included with delivery Mounting, 4 x M2 hexagon nut, 8 x washer, 4 x M2 Phillips-head screw, adapter sleeves, BF-WLL160-10 (1.0 mm) adapter sleeves, FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 1 mm Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 20 mm Operating mode 70 µs 75 mm Operating mode 250 µs 135 mm Operating mode 500 µs 160 mm Operating mode 1 ms 170 mm Operating mode 2 ms 215 mm Operating mode 8 ms 310 mm Sensing ranges with WLL180T Operating mode 16 µs 11 mm Operating mode 70 µs 38 mm Operating mode 250 µs 78 mm Operating mode 2 ms 150 mm Operating mode 8 ms 160 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 40 mm Sensing ranges with GLL170T Operating mode 50 µs 20 mm Operating mode 250 µs 50 mm
