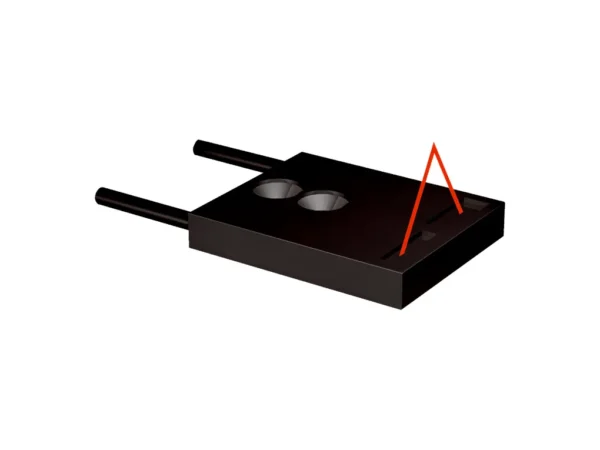

Home Fiber Optik Sensörler LL3-DC05 LIGHT GUIDE – 5326016 🔍 LL3-DC05 LIGHT GUIDE – 5326016 ✉ Teklif Al Teklif Al Stok kodu: 5326016 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 3,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Acrylnitril-Butadien-Styrol (ABS) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection Fiber arrangement Coaxial arrangement Core structure S: Ø 1,0 mm R: 16 x Ø 0,265 mm Coaxial arrangement Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application Lcd / clear material / semiconductor, Limited sensing range Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 31.82° Integrated lens Yes Minimal object diameter 0.25 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature 0 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 6.3 mm … 31 mm Operating mode 70 µs 0 mm … 38 mm Operating mode 250 µs 0 mm … 51 mm Operating mode 500 µs 0 mm … 57 mm Operating mode 1 ms 0 mm … 62 mm Operating mode 2 ms 0 mm … 89 mm Operating mode 8 ms 0 mm … 104 mm Sensing ranges with WLL180T Operating mode 16 µs 9 mm … 18 mm Operating mode 70 µs 7 mm … 29 mm Operating mode 250 µs 3 mm … 35 mm Operating mode 2 ms 4 mm … 40 mm Operating mode 8 ms 3 mm … 43 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 6 mm … 25 mm Sensing ranges with GLL170T Operating mode 50 µs 4 mm … 30 mm Operating mode 250 µs 0 mm … 32.8 mm İlgili ürünler LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git Networks and Communication Products, ControlNet Medium-distance Fiber Module – 1786-RPFMALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM31750 OPTICAL FIBER L=750MM – 2073485SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 3,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Acrylnitril-Butadien-Styrol (ABS) Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Fiber-optic head design Flat type, 90° deflection Fiber arrangement Coaxial arrangement Core structure S: Ø 1,0 mm R: 16 x Ø 0,265 mm Coaxial arrangement Angle of dispersion < 60° Yes Compatibility with infrared light (1,450 nm) No Application Lcd / clear material / semiconductor, Limited sensing range Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 31.82° Integrated lens Yes Minimal object diameter 0.25 mm Included with delivery FC fiber cutter (5304141) Compatibility tip adapters No Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature 0 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 6.3 mm … 31 mm Operating mode 70 µs 0 mm … 38 mm Operating mode 250 µs 0 mm … 51 mm Operating mode 500 µs 0 mm … 57 mm Operating mode 1 ms 0 mm … 62 mm Operating mode 2 ms 0 mm … 89 mm Operating mode 8 ms 0 mm … 104 mm Sensing ranges with WLL180T Operating mode 16 µs 9 mm … 18 mm Operating mode 70 µs 7 mm … 29 mm Operating mode 250 µs 3 mm … 35 mm Operating mode 2 ms 4 mm … 40 mm Operating mode 8 ms 3 mm … 43 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 6 mm … 25 mm Sensing ranges with GLL170T Operating mode 50 µs 4 mm … 30 mm Operating mode 250 µs 0 mm … 32.8 mm
