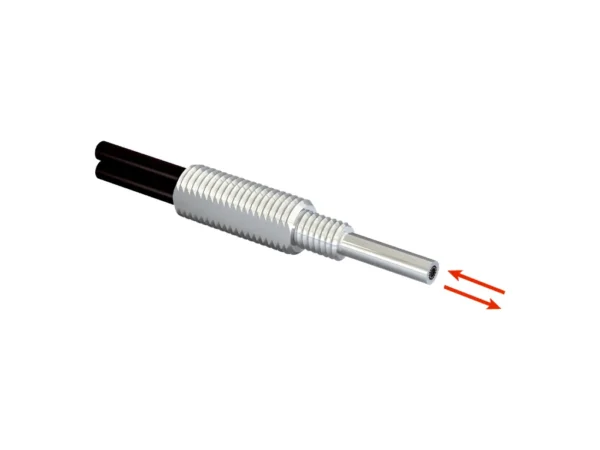

Home Fiber Optik Sensörler LL3-DB02-10 LIGHT GUIDE – 5328568 🔍 LL3-DB02-10 LIGHT GUIDE – 5328568 ✉ Teklif Al Teklif Al Stok kodu: 5328568 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex Fiber length 10,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve, Long end sleeve, Bendable sleeve Fiber arrangement Coaxial arrangement Core structure S: Ø 1 mm, R: 16 x Ø 0,25 mm Coaxial arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 2.5 mm Length of taper ≥ 90 mm Diameter of taper ≥ 2.5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimum bend radius of end sleeve 10 mm Minimal object diameter 0.015 mm Included with delivery Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141) Compatibility tip adapters No Special features Ideal for small, insufficient objects. Standard, bendable sleeve, large sensing range Mechanics/electronics Bend radius, fibre-optic cable 25 mm Bend radius, end sleeve 10 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 100 mm Operating mode 70 µs 350 mm Operating mode 250 µs 580 mm Operating mode 2 ms 850 mm Operating mode 8 ms 1,300 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light İlgili ürünler LL3-LM32450 OPTICAL FIBER L=450MM – 2073499SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35450 OPTICAL FIBER L=450MM – 2073489SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361000 OPTICAL FIBER L=1000MM – 2073494SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LT312200 OPTICAL FIBER L=2200MM – 2073487SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex Fiber length 10,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve, Long end sleeve, Bendable sleeve Fiber arrangement Coaxial arrangement Core structure S: Ø 1 mm, R: 16 x Ø 0,25 mm Coaxial arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 2.5 mm Length of taper ≥ 90 mm Diameter of taper ≥ 2.5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimum bend radius of end sleeve 10 mm Minimal object diameter 0.015 mm Included with delivery Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141) Compatibility tip adapters No Special features Ideal for small, insufficient objects. Standard, bendable sleeve, large sensing range Mechanics/electronics Bend radius, fibre-optic cable 25 mm Bend radius, end sleeve 10 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL180T Operating mode 16 µs 100 mm Operating mode 70 µs 350 mm Operating mode 250 µs 580 mm Operating mode 2 ms 850 mm Operating mode 8 ms 1,300 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light
