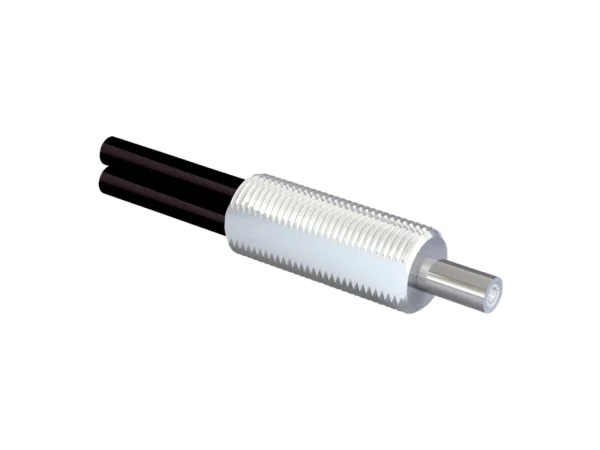

Home Fiber Optik Sensörler LL3-DB01-10 LIGHT GUIDE – 5308075 🔍 LL3-DB01-10 LIGHT GUIDE – 5308075 ✉ Teklif Al Teklif Al Stok kodu: 5308075 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 10,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve Fiber arrangement Coaxial arrangement Core structure S: Ø 1 mm, R: 16 x Ø 0,25 mm Coaxial arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 2.8 mm Length of taper ≥ 5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.015 mm Included with delivery Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141) Compatibility tip adapters No Special features Coaxial construction for exact switching. Standard, fiber length 10 m Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 65 mm Operating mode 70 µs 200 mm Operating mode 250 µs 285 mm Operating mode 500 µs 335 mm Operating mode 1 ms 370 mm Operating mode 2 ms 460 mm Operating mode 8 ms 700 mm Sensing ranges with WLL180T Operating mode 16 µs 50 mm Operating mode 70 µs 140 mm Operating mode 250 µs 250 mm Operating mode 2 ms 500 mm Operating mode 8 ms 750 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 100 mm Sensing ranges with GLL170T Operating mode 50 µs 70 mm Operating mode 250 µs 150 mm İlgili ürünler LL3-LM361250 OPTICAL FIBER L=1250MM – 2073495SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM37750 OPTICAL FIBER L=750MM – 2073498SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM35750 OPTICAL FIBER L=750MM – 2073490SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36150 OPTICAL FIBER L=150MM – 2073491SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Fibers Functional principle Proximity system For fiber-optic sensor GLL170(T), WLL180, WLL24 Ex, WLL80 Fiber length 10,000 mm Fiber material Polymethylmethacrylat (PMMA) Jacket material Polyethylen (PE) Fiber head material Stainless steel Outer diameter, fiber-optic cable connection 2.2 mm Fiber-optic cable cuttable ✔ Thread diameter (housing) M6 Fiber-optic head design Threaded sleeve Fiber arrangement Coaxial arrangement Core structure S: Ø 1 mm, R: 16 x Ø 0,25 mm Coaxial arrangement Angle of dispersion < 60° No Compatibility with infrared light (1,450 nm) No Diameter/thread size from 2 mm taper ≥ 2.8 mm Length of taper ≥ 5 mm Highly flexible/elastic fibers (bend radius 1–4 mm) No Adapter end sleeves required No Angle of dispersion 60° Integrated lens No Minimal object diameter 0.015 mm Included with delivery Mounting, 2 x M6 hexagon nut, 2 x washer, FC fiber cutter (5304141) Compatibility tip adapters No Special features Coaxial construction for exact switching. Standard, fiber length 10 m Mechanics/electronics Bend radius, fibre-optic cable 25 mm Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 Sensing ranges with WLL80 Operating mode 16 µs 65 mm Operating mode 70 µs 200 mm Operating mode 250 µs 285 mm Operating mode 500 µs 335 mm Operating mode 1 ms 370 mm Operating mode 2 ms 460 mm Operating mode 8 ms 700 mm Sensing ranges with WLL180T Operating mode 16 µs 50 mm Operating mode 70 µs 140 mm Operating mode 250 µs 250 mm Operating mode 2 ms 500 mm Operating mode 8 ms 750 mm Note Sensing ranges related to fiber-optic sensors with type of light: visible red light Sensing ranges with GLL170 Operating mode 250 µs 100 mm Sensing ranges with GLL170T Operating mode 50 µs 70 mm Operating mode 250 µs 150 mm
