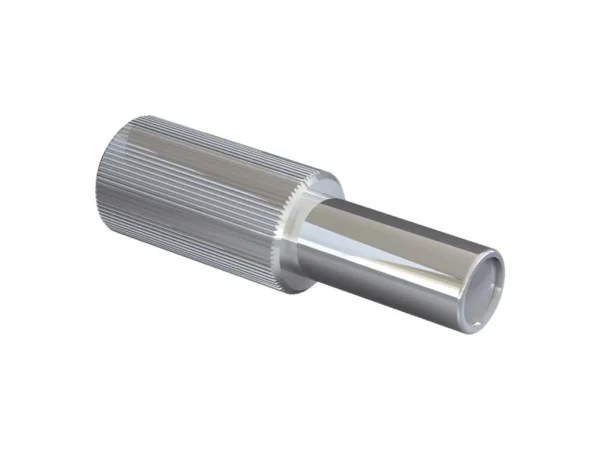

Home Fiber Optik Sensörler LL3-DA05 LENSE FOR DIFFUSE TYPE – 5326467 🔍 LL3-DA05 LENSE FOR DIFFUSE TYPE – 5326467 ✉ Teklif Al Teklif Al Stok kodu: 5326467 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Tip adapter for fibers Functional principle Proximity system For fiber-optic LL3-DH07, LL3-DM02, LL3-DM02-3, LL3-DB04 Sleeve material Aluminium (black coated) Thread diameter (housing) M4 Focus 6 mm Minimum light spot size Ø 0,5 mm Lens material Glass Items supplied 1 pieces Special features Reliable detection of small objects Mechanics/electronics Optics material Glass Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 İlgili ürünler LL3-LM37750 OPTICAL FIBER L=750MM – 2073498SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361250 OPTICAL FIBER L=1250MM – 2073495SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git ControlNet Fiber Ring Ex Long Repeater – 1786-RPFRXLALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361000 OPTICAL FIBER L=1000MM – 2073494SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Tip adapter for fibers Functional principle Proximity system For fiber-optic LL3-DH07, LL3-DM02, LL3-DM02-3, LL3-DB04 Sleeve material Aluminium (black coated) Thread diameter (housing) M4 Focus 6 mm Minimum light spot size Ø 0,5 mm Lens material Glass Items supplied 1 pieces Special features Reliable detection of small objects Mechanics/electronics Optics material Glass Ambient operating temperature –40 °C … +70 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528
