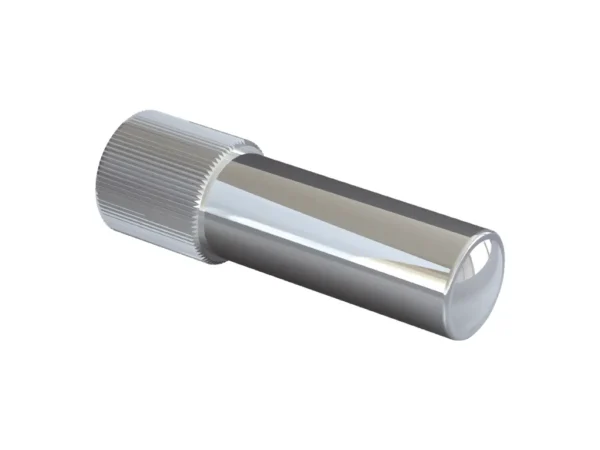

Home Fiber Optik Sensörler LL3-DA03 LENSE FOR DIFFUSE TYPE – 5326465 🔍 LL3-DA03 LENSE FOR DIFFUSE TYPE – 5326465 ✉ Teklif Al Teklif Al Stok kodu: 5326465 Kategoriler: Fiber Optik Sensörler Marka: SICK Açıklama Tecnichal data Features Device type Tip adapter for fibers Functional principle Proximity system For fiber-optic LL3-DB07, LL3-DJ01, LL3-DK21, LL3-DT01, LL3-DT01-05, LL3-DT01S01 Sleeve material Aluminium (black coated) Thread diameter (housing) M3 Focus 7 mm Minimum light spot size Ø 0,2 mm Lens material Acrylic glass (PMMA) Items supplied 1 pieces Special features Reliable detection of small objects Mechanics/electronics Optics material Acrylic glass (PMMA) Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528 İlgili ürünler LL3-LM32750 OPTICAL FIBER L=750MM – 2073500SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git Networks and Communication Products, ControlNet Medium-distance Fiber Module – 1786-RPFMALLEN BRADLEYFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM361250 OPTICAL FIBER L=1250MM – 2073495SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git LL3-LM36450 OPTICAL FIBER L=450MM – 2073492SICKFiber Optik Sensörler ₺4.500,00 Ürüne Git
Tecnichal data Features Device type Tip adapter for fibers Functional principle Proximity system For fiber-optic LL3-DB07, LL3-DJ01, LL3-DK21, LL3-DT01, LL3-DT01-05, LL3-DT01S01 Sleeve material Aluminium (black coated) Thread diameter (housing) M3 Focus 7 mm Minimum light spot size Ø 0,2 mm Lens material Acrylic glass (PMMA) Items supplied 1 pieces Special features Reliable detection of small objects Mechanics/electronics Optics material Acrylic glass (PMMA) Ambient operating temperature –40 °C … +60 °C Classifications ECLASS 5.0 27270905 ECLASS 5.1.4 27270905 ECLASS 6.0 27270905 ECLASS 6.2 27270905 ECLASS 7.0 27270905 ECLASS 8.0 27270905 ECLASS 8.1 27270905 ECLASS 9.0 27270905 ECLASS 10.0 27270905 ECLASS 11.0 27270905 ECLASS 12.0 27270905 ETIM 5.0 EC002651 ETIM 6.0 EC002651 ETIM 7.0 EC002651 ETIM 8.0 EC002651 UNSPSC 16.0901 39121528
