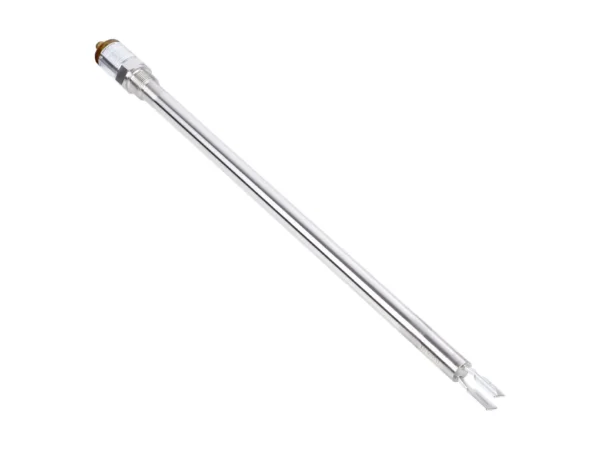

Home Seviye Sensörleri (Proses Tip) LFV230-XXSNBCPV0750 – 6074959 🔍 LFV230-XXSNBCPV0750 – 6074959 ✉ Teklif Al Teklif Al Stok kodu: 6074959 Kategoriler: Seviye Sensörleri (Proses Tip) Marka: SICK Açıklama Tecnichal data Features Medium Fluids Measurement Switch Probe length 750 mm Process pressure –1 bar … 64 bar Process temperature –40 °C … +100 °C Fill material density 0.7 g/cm³ … 2.5 g/cm³ Performance Accuracy of sensor element ± 2 mm Reproducibility ≤ 1 mm Viscosity 0.1 mPas … 10,000 mPas Resolution ≤ 1 mm Response time 500 ms MTBF 1,25*10^7 h Electronics Supply voltage 20 V AC/DC … 253 V AC/DC Power consumption ≤ 4.2 mA Initialization time < 3 s Connection type Valve plug DIN 43650 Output signal Non-contact switch Hysteresis 2 mm Inductive load ≤ 1 H Capacitive load 100 nF Enclosure rating IP65 Temperature drift 0.03 mm/K Mechanics Wetted parts Stainless steel 1.4404 Process connection ¾” NPT PN 64 Housing material Stainless steel 1.4404, PEI Ambient data Ambient operating temperature –40 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938 İlgili ürünler LFP0300-A5NMC – 1062246SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0200-B5NMC – 1062264SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP1500-A5NMC – 1062258SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP1200-A5NMC – 1062255SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Fluids Measurement Switch Probe length 750 mm Process pressure –1 bar … 64 bar Process temperature –40 °C … +100 °C Fill material density 0.7 g/cm³ … 2.5 g/cm³ Performance Accuracy of sensor element ± 2 mm Reproducibility ≤ 1 mm Viscosity 0.1 mPas … 10,000 mPas Resolution ≤ 1 mm Response time 500 ms MTBF 1,25*10^7 h Electronics Supply voltage 20 V AC/DC … 253 V AC/DC Power consumption ≤ 4.2 mA Initialization time < 3 s Connection type Valve plug DIN 43650 Output signal Non-contact switch Hysteresis 2 mm Inductive load ≤ 1 H Capacitive load 100 nF Enclosure rating IP65 Temperature drift 0.03 mm/K Mechanics Wetted parts Stainless steel 1.4404 Process connection ¾” NPT PN 64 Housing material Stainless steel 1.4404, PEI Ambient data Ambient operating temperature –40 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938
