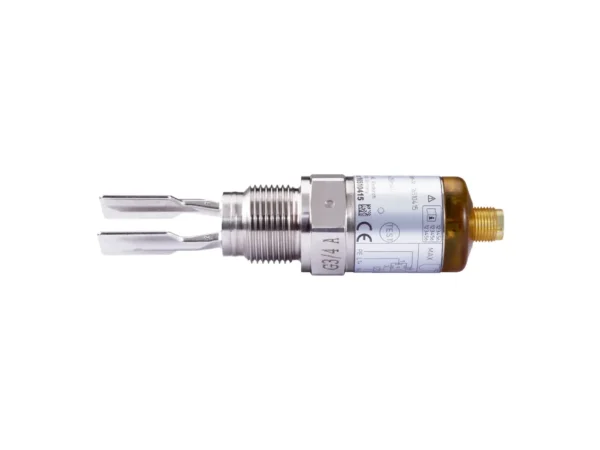

Home Seviye Sensörleri (Proses Tip) LFV200-XASGBTPML – 6037458 🔍 LFV200-XASGBTPML – 6037458 ✉ Teklif Al Teklif Al Stok kodu: 6037458 Kategoriler: Seviye Sensörleri (Proses Tip) Marka: SICK Açıklama Tecnichal data Features Medium Fluids Measurement Switch Probe length 115 mm Process pressure –1 bar … 64 bar Process temperature –40 °C … +100 °C Fill material density 0.7 g/cm³ … 2.5 g/cm³ WHG approval ✔ Authorizations WHG approval Performance Accuracy of sensor element ± 2 mm Reproducibility ≤ 1 mm Viscosity 0.1 mPas … 10,000 mPas Resolution ≤ 1 mm Response time 500 ms MTBF 1,25*10^7 h Electronics Supply voltage 9.6 V DC … 35 V DC Residual ripple ≤ 5 Vpp Power consumption < 10 mA Initialization time < 2 s VDE protection class 2 ✔ Connection type M12 round connector x 1, 4-pin Output signal Transistor output PNP Hysteresis 2 mm Output current < 250 mA Inductive load ≤ 1 H Capacitive load 100 nF Enclosure rating IP67 Temperature drift 0.03 mm/K Mechanics Wetted parts Stainless steel 1.4404 Process connection G ¾ A PN 64 Housing material Stainless steel 1.4404, PEI Ambient data Ambient operating temperature –40 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938 İlgili ürünler LFP1500-A5NMC – 1062258SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP1200-A5NMC – 1062255SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP1900-A5NMC – 1062262SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0400-B5NMC – 1062266SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Fluids Measurement Switch Probe length 115 mm Process pressure –1 bar … 64 bar Process temperature –40 °C … +100 °C Fill material density 0.7 g/cm³ … 2.5 g/cm³ WHG approval ✔ Authorizations WHG approval Performance Accuracy of sensor element ± 2 mm Reproducibility ≤ 1 mm Viscosity 0.1 mPas … 10,000 mPas Resolution ≤ 1 mm Response time 500 ms MTBF 1,25*10^7 h Electronics Supply voltage 9.6 V DC … 35 V DC Residual ripple ≤ 5 Vpp Power consumption < 10 mA Initialization time < 2 s VDE protection class 2 ✔ Connection type M12 round connector x 1, 4-pin Output signal Transistor output PNP Hysteresis 2 mm Output current < 250 mA Inductive load ≤ 1 H Capacitive load 100 nF Enclosure rating IP67 Temperature drift 0.03 mm/K Mechanics Wetted parts Stainless steel 1.4404 Process connection G ¾ A PN 64 Housing material Stainless steel 1.4404, PEI Ambient data Ambient operating temperature –40 °C … +70 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27273202 ECLASS 5.1.4 27273202 ECLASS 6.0 27273202 ECLASS 6.2 27273202 ECLASS 7.0 27273202 ECLASS 8.0 27273202 ECLASS 8.1 27273202 ECLASS 9.0 27273202 ECLASS 10.0 27273202 ECLASS 11.0 27273202 ECLASS 12.0 27273106 ETIM 5.0 EC002654 ETIM 6.0 EC002654 ETIM 7.0 EC002654 ETIM 8.0 EC002654 UNSPSC 16.0901 41111938
