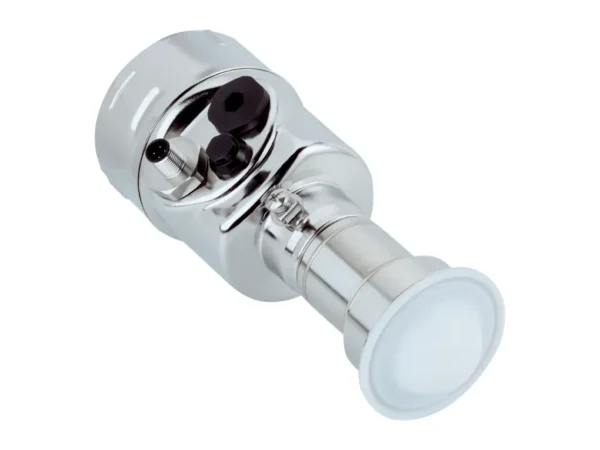

Home Seviye Sensörleri LFR-XXHCAIMHZKX – 6074857 🔍 LFR-XXHCAIMHZKX – 6074857 ✉ Teklif Al Teklif Al Stok kodu: 6074857 Kategoriler: Seviye Sensörleri Marka: SICK Açıklama Tecnichal data Features Medium Fluids Measurement Continuous Probe type Hygiene connection with encapsulated antenna system Frequency band W-band (within 75 … 85 GHz) Measuring range Up to 25 m (82.02 ft) Angle of dispersion 6° Process pressure –1 bar … 16 bar(-100 kPa … 1,600 kPa / –14.5 psig … 232 psig) Process temperature –40 °C … +130 °C RoHS certificate ✔ HART ✔ Indication Installed Control element Bluetooth Magnet pin operation Performance Accuracy of sensor element ≤ 1 mm Non-repeatability ≤ 1 mm Digital measurement resolution < 1 mm Analog measurement resolution 0.3 µA Digital output temperature drift ≤ 3 mm / 10 K, max. 10 mm Current output temperature drift ≤ 0.03% / 10 K relating to the 16 mA span or ≤ 0.3% Deviation on current output due to digital-analog conversion < 15 µA Measurement cycle time Approx. 700 ms Step response time ≤ 3 s MTBF 3,37*10^6 h Display ✔ Electronics Supply voltage 12 V DC … 35 V DC, 18 V DC … 35 V DC with illumination switched on Protection class III (IEC 61010-1) Connection type M20 x 1.5 / cable gland PA black (ø 5 mm – 9 mm) Output signal 4 mA … 20 mA / HART Contamination rating 4 Enclosure rating IP66 / IP68 / IP69 EMC EN 61326-1 Start-up current < 3.6 mA Overvoltage category III (IEC 61010-1) Short-circuit protection ✔ Mechanics Process connection Clamp 2” PN16 (diameter 64 mm) DIN32676, ISO2825 / 316L Housing material Stainless steel (electropolished) Housing design Single-chamber housing Sealing material PTFE Antenna material PTFE Second line of defense Not integrated Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27200505 ECLASS 5.1.4 27200505 ECLASS 6.0 27200505 ECLASS 6.2 27200505 ECLASS 7.0 27200505 ECLASS 8.0 27200505 ECLASS 8.1 27200505 ECLASS 9.0 27200505 ECLASS 10.0 27270807 ECLASS 11.0 27270807 ECLASS 12.0 27274501 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950 İlgili ürünler LFR-XXUTAAMHAAX – 6072213SICKSeviye Sensörleri ₺3.500,00 Ürüne Git LFR-ACTTDAJHKAX – 6072202SICKSeviye Sensörleri ₺3.500,00 Ürüne Git LFR-XXFFBJ2HAAX – 6072215SICKSeviye Sensörleri ₺3.500,00 Ürüne Git LFR-XXTTAABHKKX – 6075611SICKSeviye Sensörleri ₺3.500,00 Ürüne Git
Tecnichal data Features Medium Fluids Measurement Continuous Probe type Hygiene connection with encapsulated antenna system Frequency band W-band (within 75 … 85 GHz) Measuring range Up to 25 m (82.02 ft) Angle of dispersion 6° Process pressure –1 bar … 16 bar(-100 kPa … 1,600 kPa / –14.5 psig … 232 psig) Process temperature –40 °C … +130 °C RoHS certificate ✔ HART ✔ Indication Installed Control element Bluetooth Magnet pin operation Performance Accuracy of sensor element ≤ 1 mm Non-repeatability ≤ 1 mm Digital measurement resolution < 1 mm Analog measurement resolution 0.3 µA Digital output temperature drift ≤ 3 mm / 10 K, max. 10 mm Current output temperature drift ≤ 0.03% / 10 K relating to the 16 mA span or ≤ 0.3% Deviation on current output due to digital-analog conversion < 15 µA Measurement cycle time Approx. 700 ms Step response time ≤ 3 s MTBF 3,37*10^6 h Display ✔ Electronics Supply voltage 12 V DC … 35 V DC, 18 V DC … 35 V DC with illumination switched on Protection class III (IEC 61010-1) Connection type M20 x 1.5 / cable gland PA black (ø 5 mm – 9 mm) Output signal 4 mA … 20 mA / HART Contamination rating 4 Enclosure rating IP66 / IP68 / IP69 EMC EN 61326-1 Start-up current < 3.6 mA Overvoltage category III (IEC 61010-1) Short-circuit protection ✔ Mechanics Process connection Clamp 2” PN16 (diameter 64 mm) DIN32676, ISO2825 / 316L Housing material Stainless steel (electropolished) Housing design Single-chamber housing Sealing material PTFE Antenna material PTFE Second line of defense Not integrated Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27200505 ECLASS 5.1.4 27200505 ECLASS 6.0 27200505 ECLASS 6.2 27200505 ECLASS 7.0 27200505 ECLASS 8.0 27200505 ECLASS 8.1 27200505 ECLASS 9.0 27200505 ECLASS 10.0 27270807 ECLASS 11.0 27270807 ECLASS 12.0 27274501 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950
