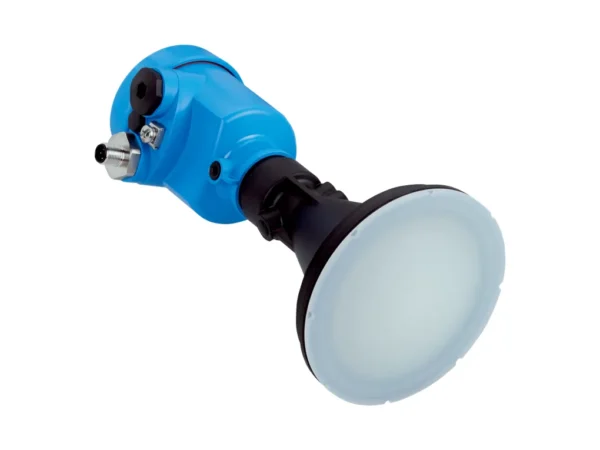

Home Seviye Sensörleri LFR-XXBXXCBHKXX – 6072196 🔍 LFR-XXBXXCBHKXX – 6072196 ✉ Teklif Al Teklif Al Stok kodu: 6072196 Kategoriler: Seviye Sensörleri Marka: SICK Açıklama Tecnichal data Features Medium Fluids Measurement Continuous Probe type Plastic horn antenna made from PP Frequency band W-band (within 75 … 85 GHz) Measuring range Up to 30 m (98.43 ft) Angle of dispersion 3° Process pressure –1 bar … 2 bar(-100 kPa … 200 kPa / –14.5 psig … 29.1 psig) Process temperature –40 °C … +80 °C RoHS certificate ✔ HART ✔ Indication Without Performance Accuracy of sensor element ≤ 1 mm Non-repeatability ≤ 1 mm Digital measurement resolution < 1 mm Analog measurement resolution 0.3 µA Digital output temperature drift ≤ 3 mm / 10 K, max. 10 mm Current output temperature drift ≤ 0.03% / 10 K relating to the 16 mA span or ≤ 0.3% Deviation on current output due to digital-analog conversion < 15 µA Measurement cycle time Approx. 700 ms Step response time ≤ 3 s MTBF 3,37*10^6 h Electronics Supply voltage 12 V DC … 35 V DC, 18 V DC … 35 V DC with illumination switched on Protection class III (IEC 61010-1) Connection type M20 x 1.5 / plug connector M12 x 1 pin assignment B Output signal 4 mA … 20 mA / HART Contamination rating 4 Enclosure rating IP66 / IP67 EMC EN 61326-1 Start-up current < 3.6 mA Overvoltage category III (IEC 61010-1) Short-circuit protection ✔ Mechanics Process connection Without process connection Housing material Plastic Housing design Single-chamber housing Sealing material PP Antenna material PP Second line of defense Not integrated Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27200505 ECLASS 5.1.4 27200505 ECLASS 6.0 27200505 ECLASS 6.2 27200505 ECLASS 7.0 27200505 ECLASS 8.0 27200505 ECLASS 8.1 27200505 ECLASS 9.0 27200505 ECLASS 10.0 27270807 ECLASS 11.0 27270807 ECLASS 12.0 27274501 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950 İlgili ürünler LFR-XXFFBJ2HAAX – 6072215SICKSeviye Sensörleri ₺3.500,00 Ürüne Git LFR-XXUTBBJHAAX – 6072214SICKSeviye Sensörleri ₺3.500,00 Ürüne Git LFR-XXUTAAOHAKX – 6075379SICKSeviye Sensörleri ₺3.500,00 Ürüne Git LFR-ACTTBAJHKAX – 6072201SICKSeviye Sensörleri ₺3.500,00 Ürüne Git
Tecnichal data Features Medium Fluids Measurement Continuous Probe type Plastic horn antenna made from PP Frequency band W-band (within 75 … 85 GHz) Measuring range Up to 30 m (98.43 ft) Angle of dispersion 3° Process pressure –1 bar … 2 bar(-100 kPa … 200 kPa / –14.5 psig … 29.1 psig) Process temperature –40 °C … +80 °C RoHS certificate ✔ HART ✔ Indication Without Performance Accuracy of sensor element ≤ 1 mm Non-repeatability ≤ 1 mm Digital measurement resolution < 1 mm Analog measurement resolution 0.3 µA Digital output temperature drift ≤ 3 mm / 10 K, max. 10 mm Current output temperature drift ≤ 0.03% / 10 K relating to the 16 mA span or ≤ 0.3% Deviation on current output due to digital-analog conversion < 15 µA Measurement cycle time Approx. 700 ms Step response time ≤ 3 s MTBF 3,37*10^6 h Electronics Supply voltage 12 V DC … 35 V DC, 18 V DC … 35 V DC with illumination switched on Protection class III (IEC 61010-1) Connection type M20 x 1.5 / plug connector M12 x 1 pin assignment B Output signal 4 mA … 20 mA / HART Contamination rating 4 Enclosure rating IP66 / IP67 EMC EN 61326-1 Start-up current < 3.6 mA Overvoltage category III (IEC 61010-1) Short-circuit protection ✔ Mechanics Process connection Without process connection Housing material Plastic Housing design Single-chamber housing Sealing material PP Antenna material PP Second line of defense Not integrated Ambient data Ambient operating temperature –40 °C … +80 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27200505 ECLASS 5.1.4 27200505 ECLASS 6.0 27200505 ECLASS 6.2 27200505 ECLASS 7.0 27200505 ECLASS 8.0 27200505 ECLASS 8.1 27200505 ECLASS 9.0 27200505 ECLASS 10.0 27270807 ECLASS 11.0 27270807 ECLASS 12.0 27274501 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41111950
