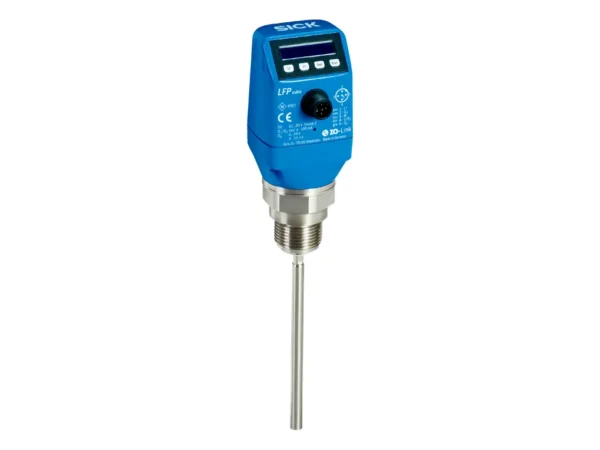

Home Seviye Sensörleri (Proses Tip) LFP0240-A4NMB – 1094591 🔍 LFP0240-A4NMB – 1094591 ✉ Teklif Al Teklif Al Stok kodu: 1094591 Kategoriler: Seviye Sensörleri (Proses Tip) Marka: SICK Açıklama Tecnichal data Features Medium Fluids Measurement Switch, Continuous Design Standard Probe type Rod probe Probe length 240 mm Process pressure –1 bar … 10 bar Process temperature –20 °C … +100 °C RoHS certificate ✔ IO-Link ✔ cULus certificate ✔ Performance Accuracy of sensor element ± 5 mm Reproducibility ≤ 2 mm Resolution < 2 mm Response time < 400 ms Dielectricity constant ≥ 5 for rod probe / cable probe ≥ 1.8 with coaxial tube Conductivity No limitation Maximum level change ≤ 500 mm/s Deactivated area at process connection 25 mm Deactivated area at end of probe ≥ 10 mm MTTF 194.3 years (EN ISO 13849-1) Display ✔ Electronics Supply voltage 12 V DC … 30 V DC Power consumption ≤ 100 mA at 24 V DC without output load Initialization time ≤ 5 s Protection class III Connection type Round connector M12 x 1, 5-pin Output signal 1 x PNP + 1 x PNP/NPN + 4 mA … 20 mA / 0 V … 10 V Output load 4 mA … 20 mA < 500 Ohm at Uv > 15 V, 4 mA … 20 mA < 350 Ohm at Uv > 12 V, 0 V … 10 V > 750 Ohm at Uv 14 ≥ V Hysteresis Min. 2 mm, free adjustable Output current < 100 mA Inductive load < 1 H Capacitive load 100 nF Enclosure rating IP67: EN 60529 Temperature drift < 0.1 mm/K Lower signal level 3.8 mA … 4 mA Upper signal level 20 mA … 20.5 mA EMC EN 61326-2-3, 2014/30/EU Mechanics Wetted parts 1.4404, PTFE FKM Process connection G ¾ A Housing material Plastic PBT Max. probe load ≤ 6 Nm Ambient data Ambient operating temperature –20 °C … +60 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27200513 ECLASS 5.1.4 27200513 ECLASS 6.0 27200513 ECLASS 6.2 27200513 ECLASS 7.0 27200513 ECLASS 8.0 27200513 ECLASS 8.1 27200513 ECLASS 9.0 27200513 ECLASS 10.0 27200513 ECLASS 11.0 27200513 ECLASS 12.0 27200513 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41113710 İlgili ürünler LFP1400-A5NMC – 1062257SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0800-A5NMC – 1062251SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0300-B5NMC – 1062265SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git LFP0300-A5NMC – 1062246SICKSeviye Sensörleri (Proses Tip) ₺4.200,00 Ürüne Git
Tecnichal data Features Medium Fluids Measurement Switch, Continuous Design Standard Probe type Rod probe Probe length 240 mm Process pressure –1 bar … 10 bar Process temperature –20 °C … +100 °C RoHS certificate ✔ IO-Link ✔ cULus certificate ✔ Performance Accuracy of sensor element ± 5 mm Reproducibility ≤ 2 mm Resolution < 2 mm Response time < 400 ms Dielectricity constant ≥ 5 for rod probe / cable probe ≥ 1.8 with coaxial tube Conductivity No limitation Maximum level change ≤ 500 mm/s Deactivated area at process connection 25 mm Deactivated area at end of probe ≥ 10 mm MTTF 194.3 years (EN ISO 13849-1) Display ✔ Electronics Supply voltage 12 V DC … 30 V DC Power consumption ≤ 100 mA at 24 V DC without output load Initialization time ≤ 5 s Protection class III Connection type Round connector M12 x 1, 5-pin Output signal 1 x PNP + 1 x PNP/NPN + 4 mA … 20 mA / 0 V … 10 V Output load 4 mA … 20 mA < 500 Ohm at Uv > 15 V, 4 mA … 20 mA < 350 Ohm at Uv > 12 V, 0 V … 10 V > 750 Ohm at Uv 14 ≥ V Hysteresis Min. 2 mm, free adjustable Output current < 100 mA Inductive load < 1 H Capacitive load 100 nF Enclosure rating IP67: EN 60529 Temperature drift < 0.1 mm/K Lower signal level 3.8 mA … 4 mA Upper signal level 20 mA … 20.5 mA EMC EN 61326-2-3, 2014/30/EU Mechanics Wetted parts 1.4404, PTFE FKM Process connection G ¾ A Housing material Plastic PBT Max. probe load ≤ 6 Nm Ambient data Ambient operating temperature –20 °C … +60 °C Ambient temperature, storage –40 °C … +80 °C Classifications ECLASS 5.0 27200513 ECLASS 5.1.4 27200513 ECLASS 6.0 27200513 ECLASS 6.2 27200513 ECLASS 7.0 27200513 ECLASS 8.0 27200513 ECLASS 8.1 27200513 ECLASS 9.0 27200513 ECLASS 10.0 27200513 ECLASS 11.0 27200513 ECLASS 12.0 27200513 ETIM 5.0 EC001447 ETIM 6.0 EC001447 ETIM 7.0 EC001447 ETIM 8.0 EC001447 UNSPSC 16.0901 41113710
